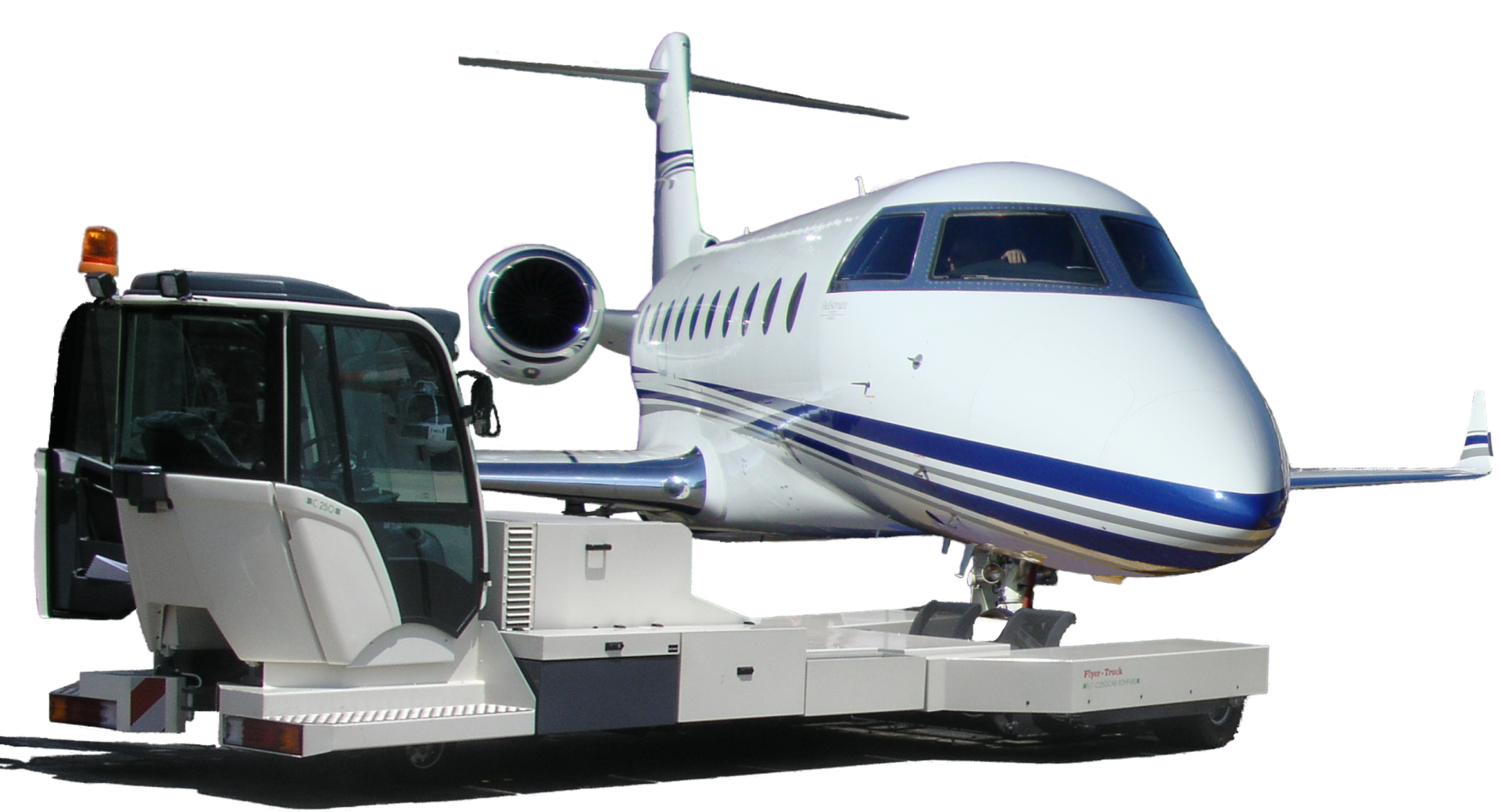

C200-400 electro
C200-400 electro
adapted for aircraft and helicopter
up to 40.0 t.
max. take off weight

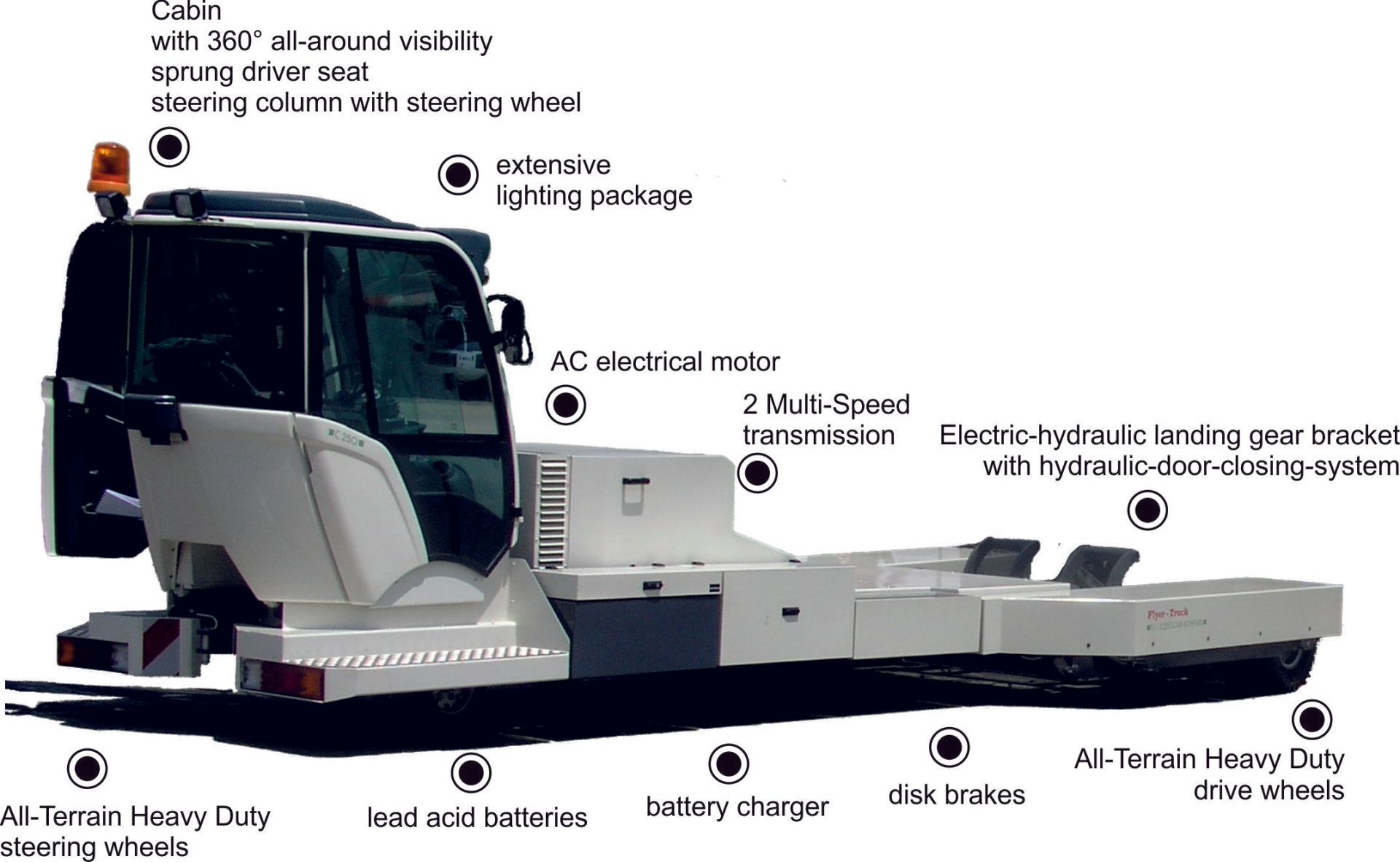

Overview
Technical Data
drive system
2 AC drive motors each 48V, 7.5 kW
transmission PMS
battery
lead-acid batteries 48V 640Ah
battery charger
HF charger 230/48V 120A with charge level indicator
brake
Hydraulic oil-multi-disc brake, low-wear in the drive gear,
parking brake multi-disc brake
parking brake multi-disc brake
speed
Forward and backward:
in two steps 0- 22 km / h
operation range
approx. 6 hours operating time depending on speed and load
frames
Loading weight: 4000 kg,
for aeroplanes approx. 40.0 t MTOW
weight empty: 3.650 kg
for aeroplanes approx. 40.0 t MTOW
weight empty: 3.650 kg
control / steering
Pulse contact control
Synchron and permanent steering
Synchron and permanent steering
electro-hydraulic steering operated by steering wheel
cabin
Driver cabin for one operator with ergonomically situated operating elements, side door, sliding window

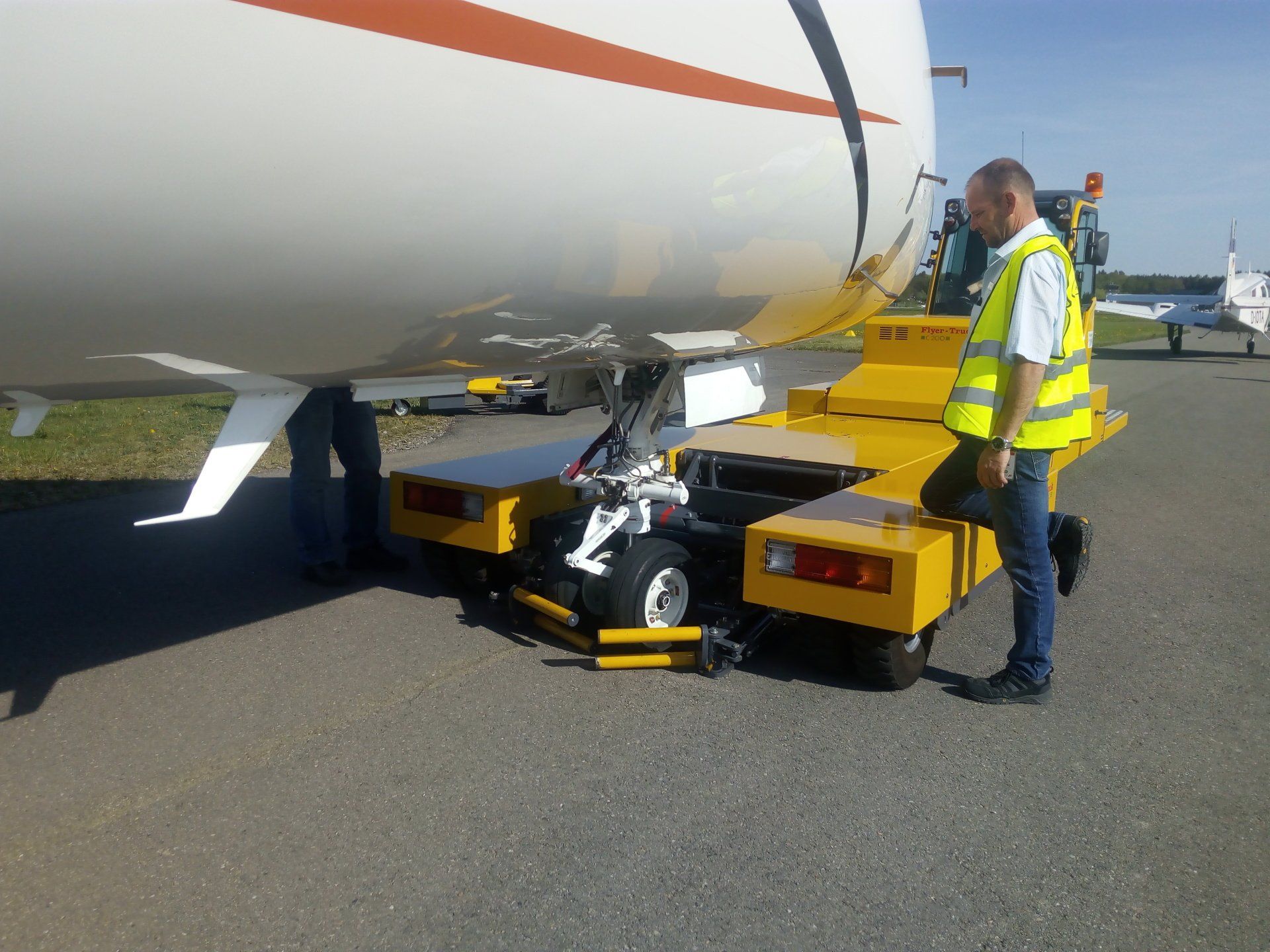

landing gear bracket
Universal receptacle for double front landing gear, up to width tire 660 mm, with hydraulic front gear wheel hold system, hydraulic door closing system
axes
2 drive axes
tires
Drive wheels: 23 x 9-10 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
lighting / safety device
- emergency stop
- driving, working and safety lights
- safety up turn light on top
- windshield wipers in the front and rear with wash
- safety up turn light on top
- windshield wipers in the front and rear with wash
- heating
- signal horn
- fire-extinguisher
- fire-extinguisher
Configuration
Configurate your Flyer-Truck aircraft mover especially for your individual use:
- cabin equipment
- lighting
- landing gear bracket
Gallery
Adapted for aircraft types like:
Beechcraft
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
