FLT 180 e-drive
FLT 180 e-drive
adapted for aircraft and helicopter
up to 25.0 t.
max. take off weight

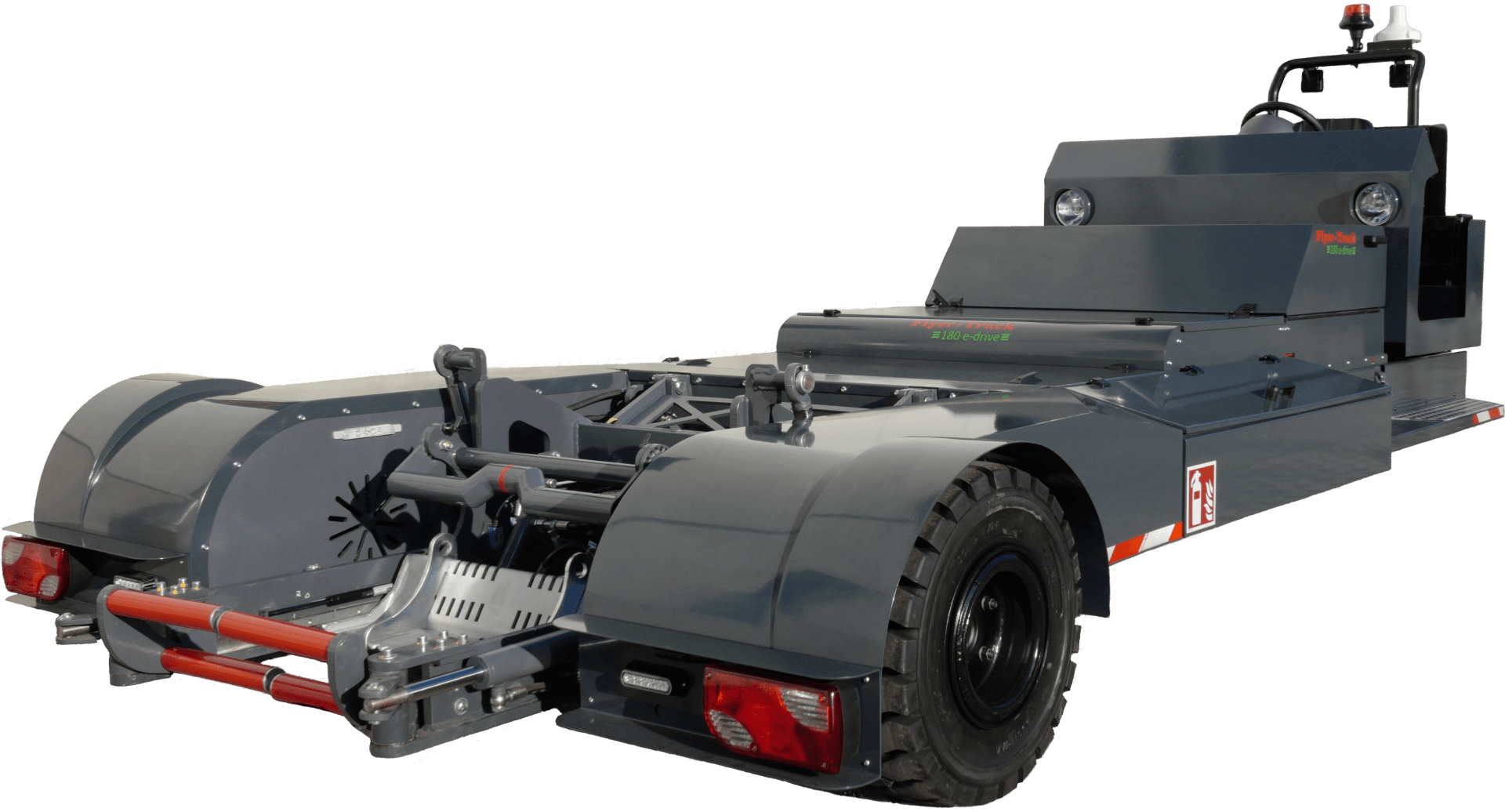

The Flyer-Truck FLT 180 e-drive is an aircraft tug for business jets up to 25.0 tons MTOW. A multi-talent for airplanes with single and double nose wheels. It combines the demand for value stability, ease of use, flexible use without mechanical conversion measures and the highest quality workmanship.

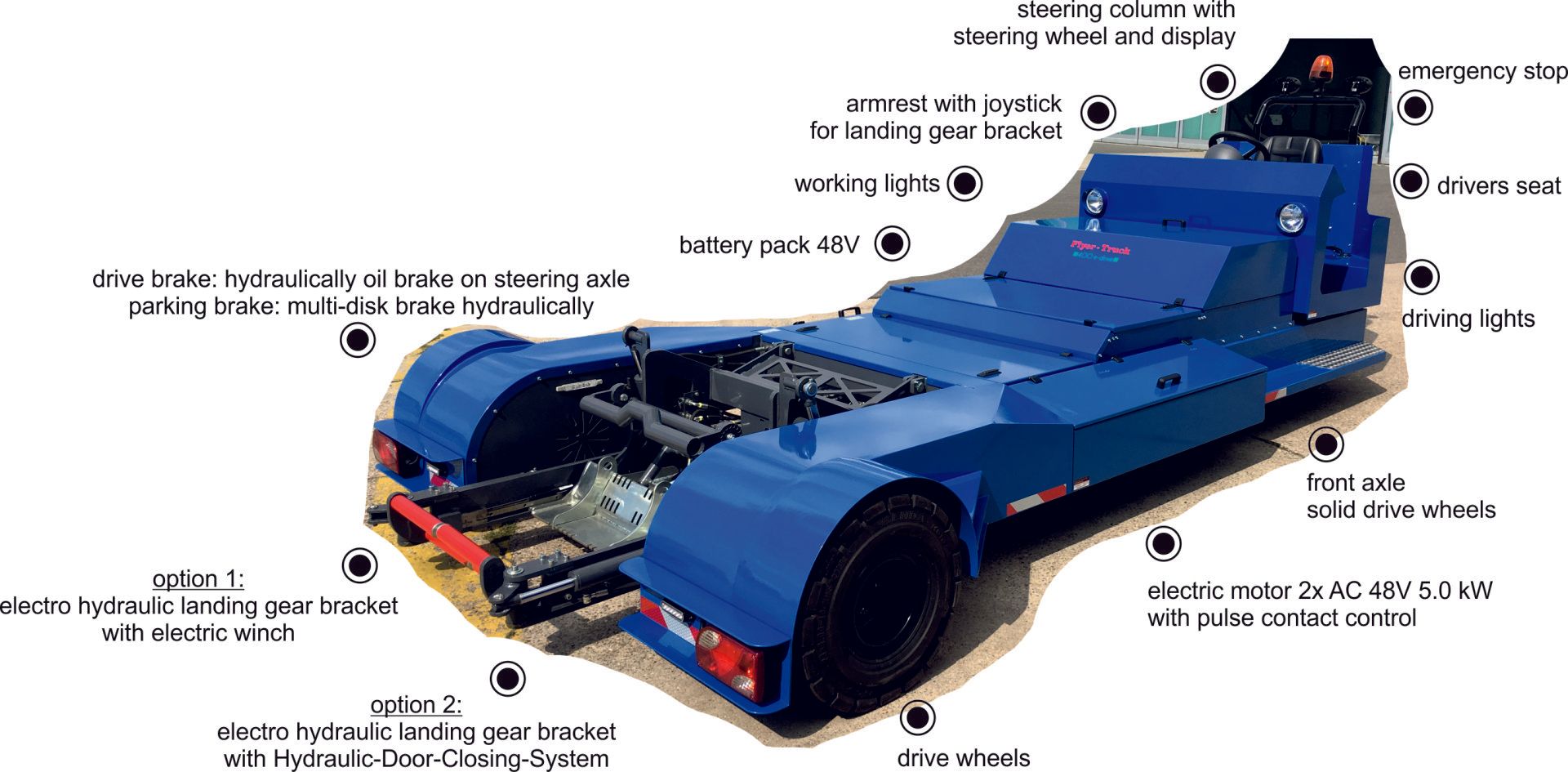

Overview
Technical Data
drive system
Electric engine 2 x AC 48V 5.0 kW
Pulse contact control
Synchron and permanent steering
Single gear PMS
Pulse contact control
Synchron and permanent steering
Single gear PMS
battery
lead acid batteries 48V 640Ah
battery charger
HF charger 230 / 48V 120A with charge level indicator
brake
drive brake: hydraulically oil brake on steering axle
parking brake: multi-disk brake hydraulically
parking brake: multi-disk brake hydraulically
speed
Forward and backward:
approx. 0 - 20 km / h
regulation via foot pedal
operating range
approx. 2.5 hours driving time depending on speed and load
frame
Loading weight: 3500 kg, for aeroplanes approx. 25.0 t MTOW
weight empty: 3760 kg / 8289 lbs
dimension: LxWxH 5.40 x 2.55 x 1.90 m
weight empty: 3760 kg / 8289 lbs
dimension: LxWxH 5.40 x 2.55 x 1.90 m
steering
Central steering axle with double wheel
Electric mechanic steering with steering column and steering wheel
Electric mechanic steering with steering column and steering wheel

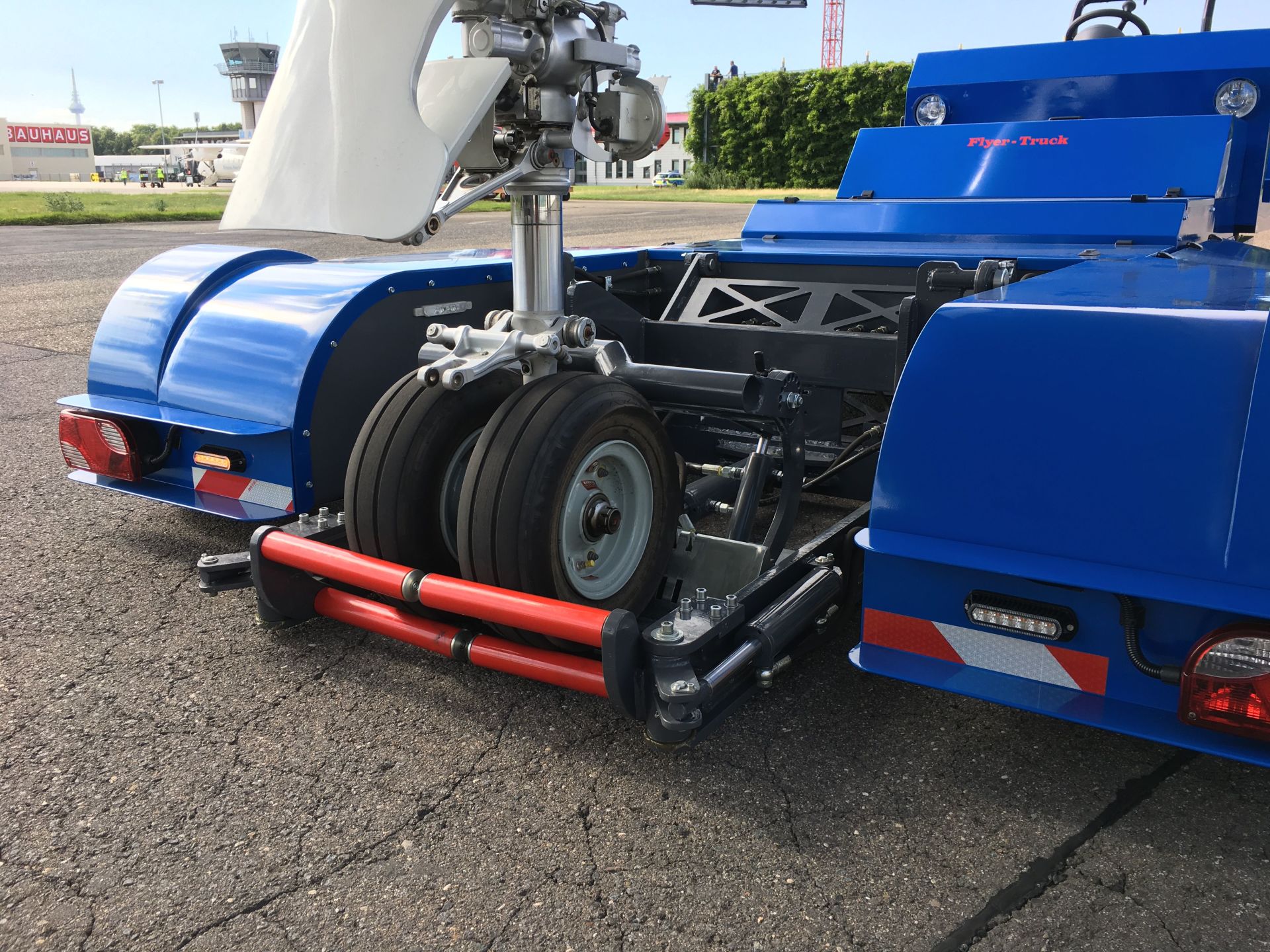

landing gear bracket
Option 1:

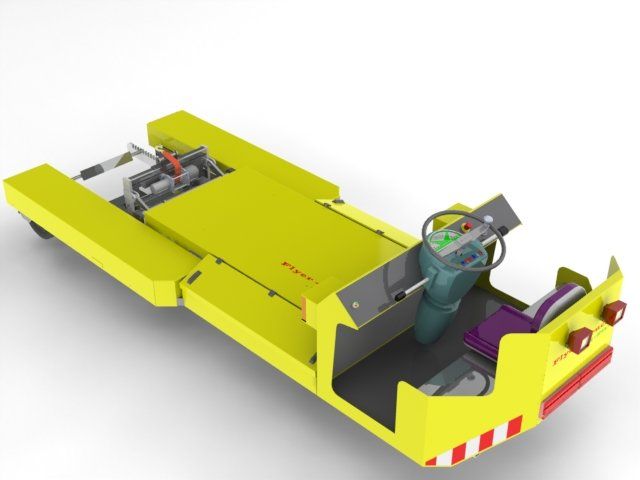

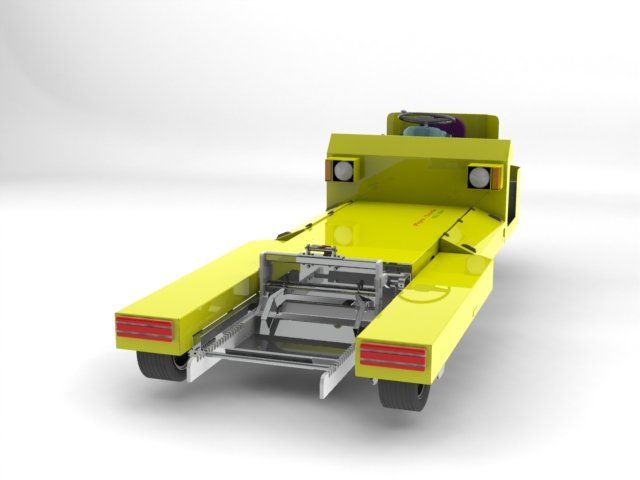

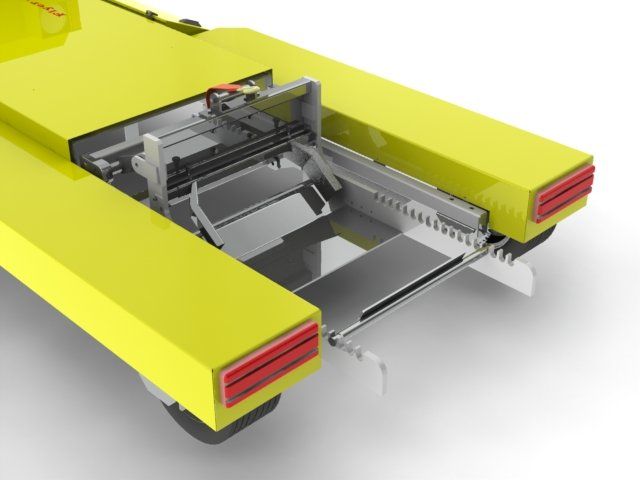

Electric hydraulic landing gear bracket EWEH
- with powerful belt winch
- mechanical safety pin
Option 2:
Electric hydraulic landing gear bracket HDCS:
- electric-hydraulic guided lifting and holding hydraulic
- with door opening and closing system
- with door opening and closing system
- ramp for different wheel diameter
- wheel hold system for safety anti output
- safety system anti uncontrolled opening of the doors
- wheel hold system for safety anti output
- safety system anti uncontrolled opening of the doors

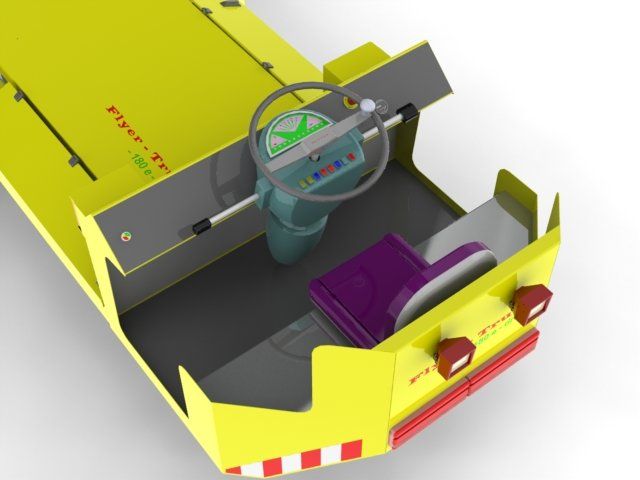

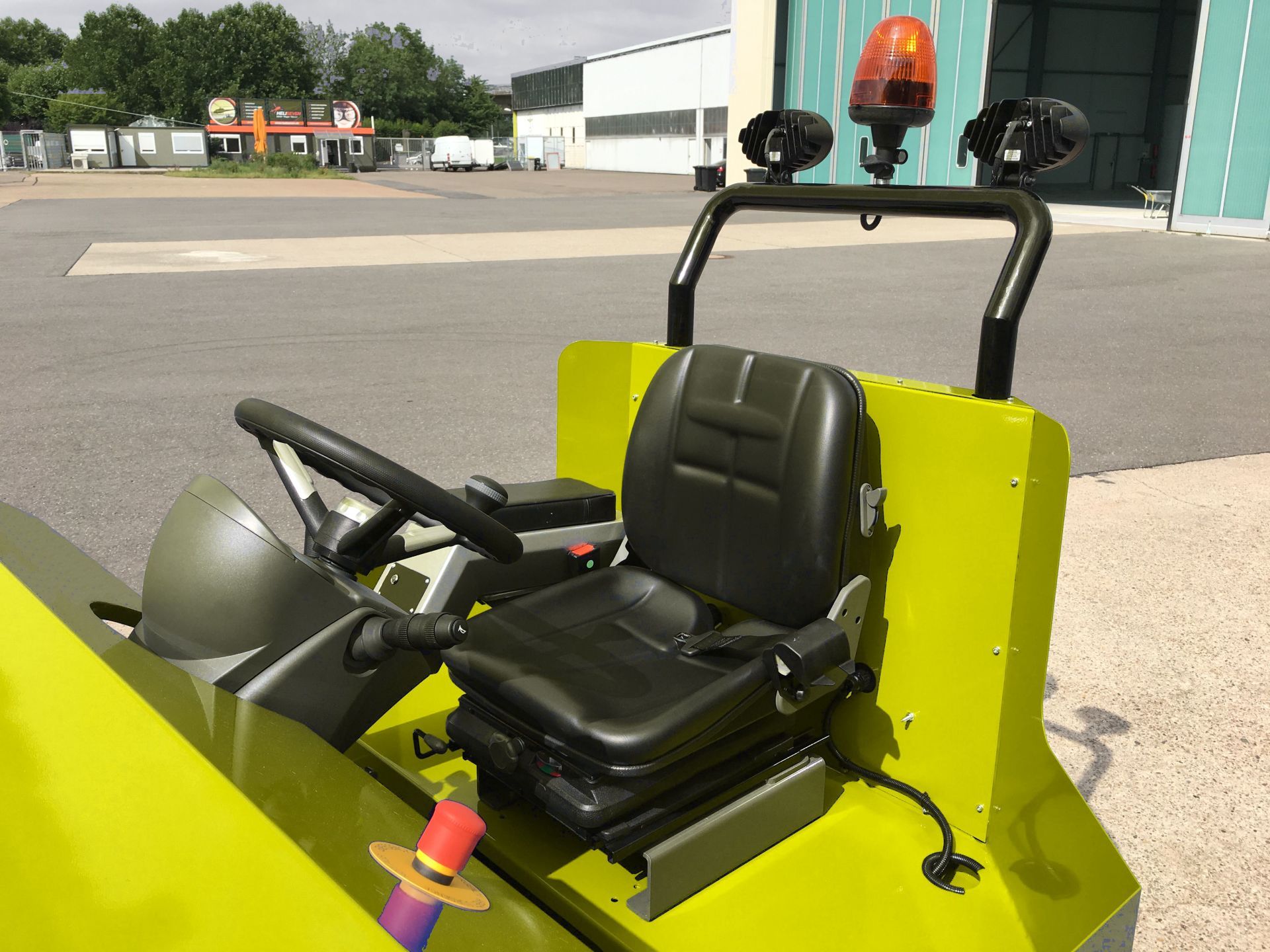

drivers plat
Driver’s position with seat and water proofed operation elements
Steering column with steering wheel and display, feed pedal for speed and brake, drive direction switch, operation elements for landing gear bracket
Steering column with steering wheel and display, feed pedal for speed and brake, drive direction switch, operation elements for landing gear bracket
tires
Drive wheels: 23 x 9-10 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
Lighting / safety device
- emergency stop
- worklight at the landing gear bracket
- driving lights for pre-u. reverse
- warning flashing light yellow
- horn
- Safety reflectors
- Driving breaker

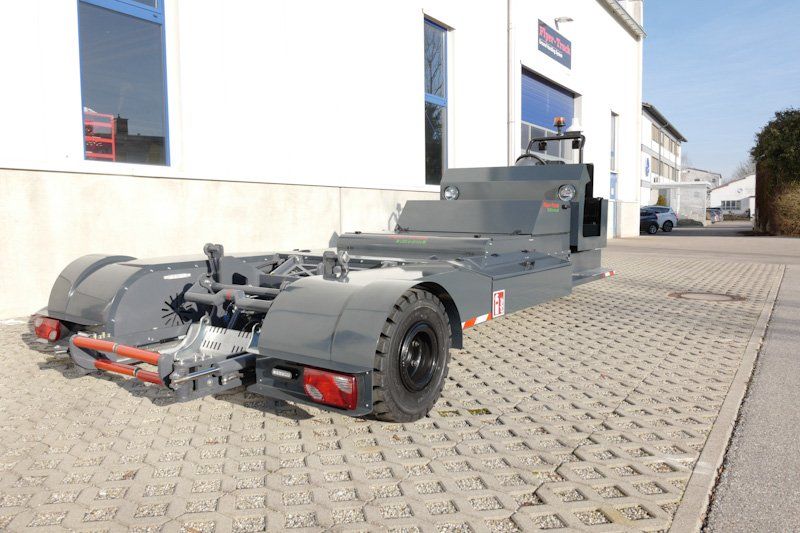

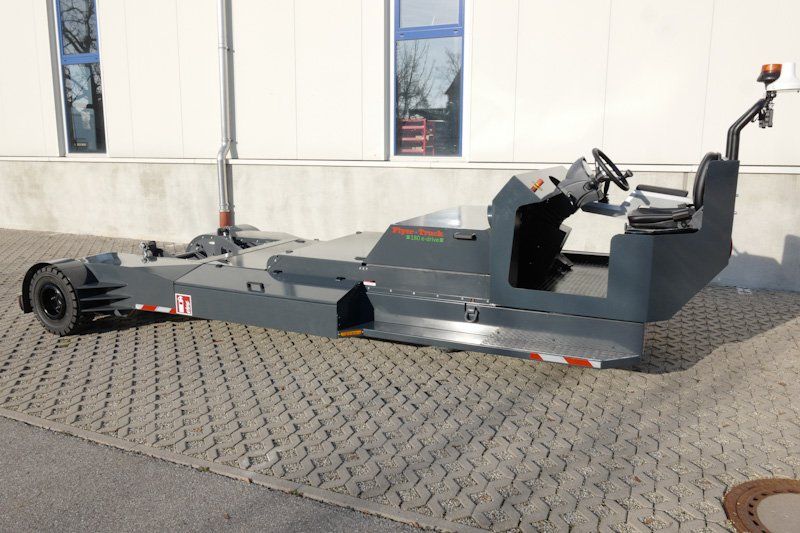

Gallery
Adapted for aircraft types like:
Beechcraft
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
