C250-800 electro
C250-800 electro
adapted for aircraft and helicopter
up to 80.0 t. max. take off weight
Overview
Technical Data
drive system
2 AC drive motors each 80V, 27 kW
single gear PMS
battery
8 PZS 640Ah 80 Volt lead-acid batteries
battery charger
80V HF charger, with charge level indicator, approx. 6 hours charging time, external
brake
Hydraulic oil-multi-disc brake, low-wear in the drive gear,
parking brake disc brake
parking brake disc brake
speed
Forward and backward:
max. about 25 km / h
operation range
approx. 90 km depending on speed and load
frames
Loading weight: 7800 kg,
for aeroplanes approx. 80.0 t MTOW
weight empty: 5400 kg
for aeroplanes approx. 80.0 t MTOW
weight empty: 5400 kg
control / steering
AC-Contoller 72-96 V 650A
electro-hydraulic steering operated by steering wheel
cabin
Driver cabin for one operator with ergonomically situated operating elements, side door, sliding window

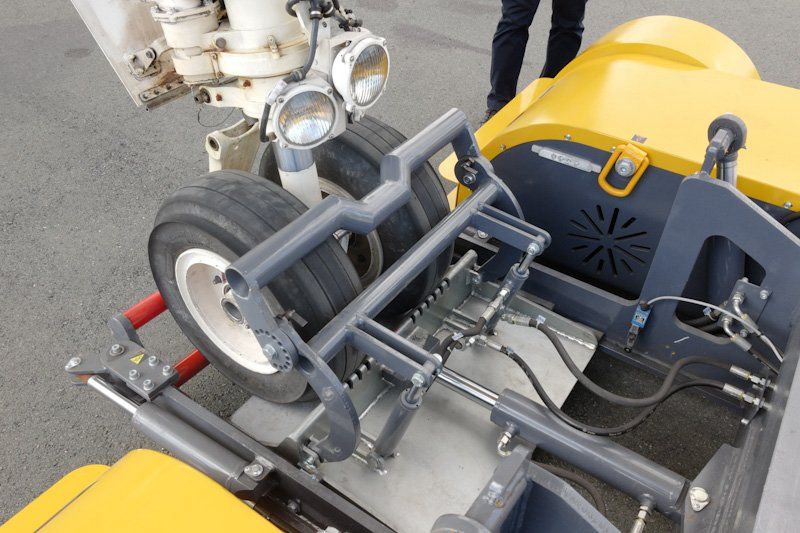

landing gear bracket
Universal receptacle for double front landing gear, up to width tire 660 mm, with hydraulic front gear wheel hold system, hydraulic door closing system
axes
2 drive axes
tires
Drive wheels: 23 x 9-10 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
lighting / safety device
- emergency stop
- driving, working and safety lights
- safety up turn light on top
- windshield wipers in the front and rear with wash
- safety up turn light on top
- windshield wipers in the front and rear with wash
- heating
- signal horn
- fire-extinguisher
- fire-extinguisher
Configuration
Configurate your Flyer-Truck aircraft mover especially for your individual use:
- cabin equipment
- lighting
- landing gear bracket
Gallery
Adapted for aircraft types like:
Beechcraft
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
