FLT 400 e-drive
FLT 400 e-drive
adapted for aircraft and helicopter
up to 40.0 t.
max. take off weight

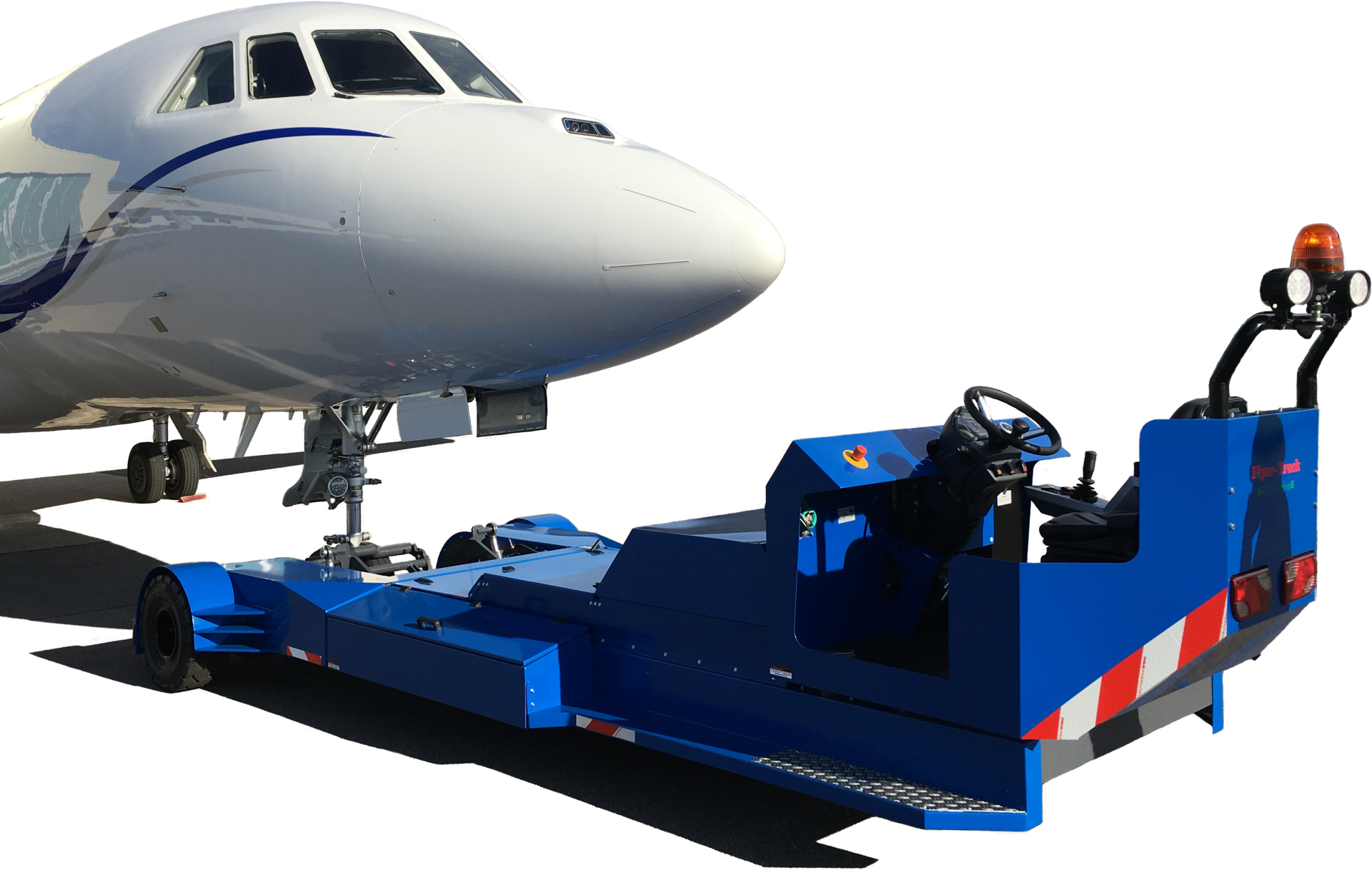

The Flyer-Truck FLT 400 e-drive is an aircraft tug for business jets up to 40 tons MTOW. A multi-talent for airplanes with single and double nose wheels . It combines the demand for value stability, ease of use, flexible use without mechanical conversion measures and the highest quality workmanship.
Overview
Technical Data

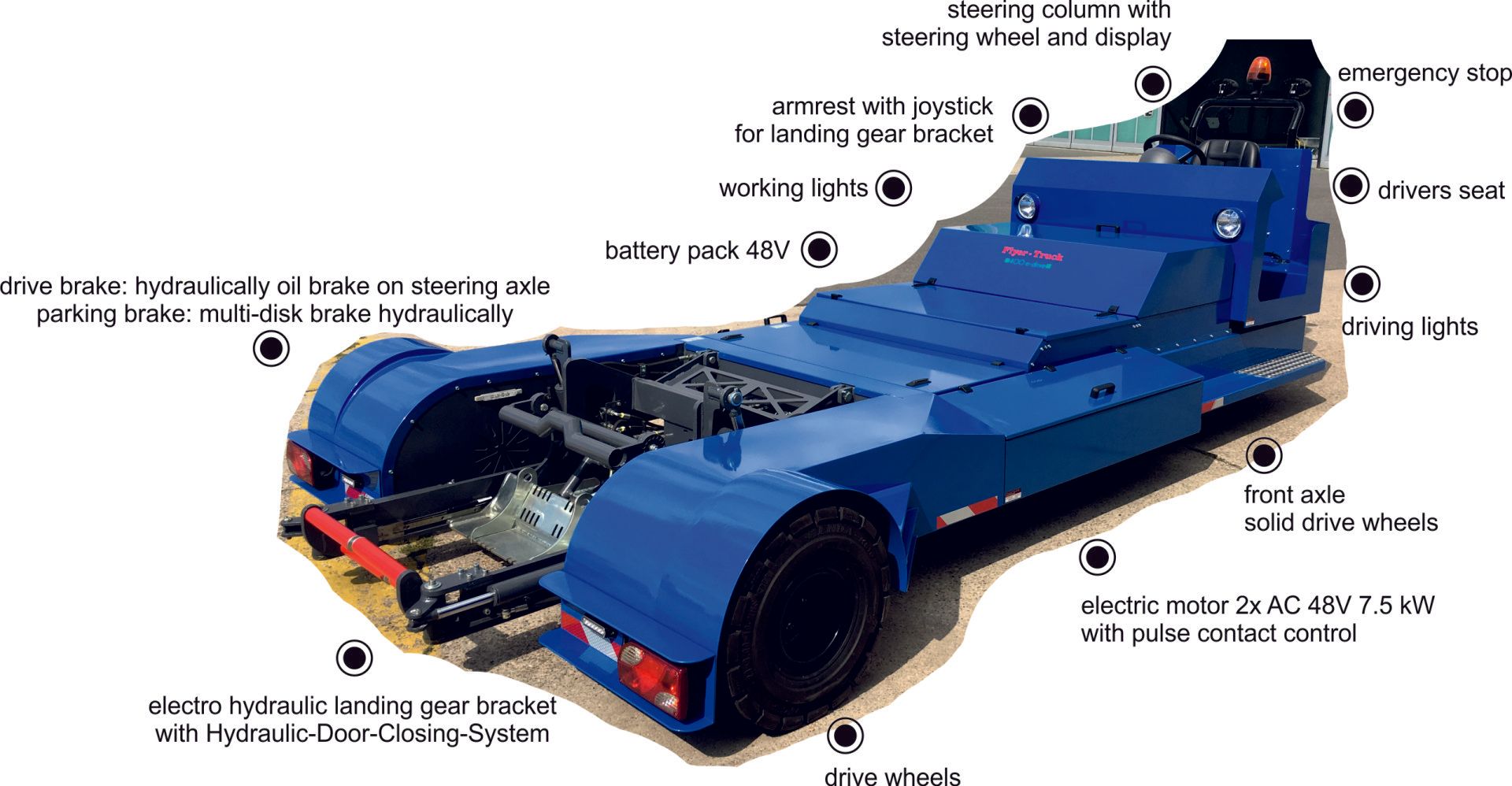

drive system
2 AC drive engine 48V 7.5 kW
Pulse contact control
Synchron and permanent steering
single gear PMS
Synchron and permanent steering
single gear PMS
Drums
lead-acid batteries
48V 640 Ah for approx. 6 hours operation time
battery charger
230/48V 120A high frequency charger with state of charge and current holding device, 380V main power
brake
drive brake: hydraulically oil brake on steering axle
parking brake: multi-disk hydraulically
parking brake: multi-disk hydraulically
speed
Forward and backward:
approx. 0 - 22 km / h
regulation via foot pedal
operating range
approx. 6 hours driving time depending on speed level and load
frames
Loading weight: 4000 kg,
for aeroplanes approx. 25.0 t MTOW
weight empty: 3530 kg / 7782 lbs
dimension: (LxWxH) 5.40 x 2.55 x 1.90 m
weight empty: 3530 kg / 7782 lbs
dimension: (LxWxH) 5.40 x 2.55 x 1.90 m
steering
Central steering axle with double wheel
Electric mechanic steering with steering column and steering wheel
Electric mechanic steering with steering column and steering wheel
landing gear bracket
Hydraulic-Door-Closing-System (HDCS)
- hydraulically landing gear bracket
- with door closing system
- wheel holder for double and single wheels
- operation on driver’s position
- hydraulically landing gear bracket
- with door closing system
- wheel holder for double and single wheels
- operation on driver’s position
drivers plat
Driver’s position with seat and water proofed operation elements
Steering column with steering wheel and display, feed pedal for speed and brake, drive direction switch, operation elements for landing gear bracket
Steering column with steering wheel and display, feed pedal for speed and brake, drive direction switch, operation elements for landing gear bracket
tires
Drive wheels: 23 x 9-10 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
lighting / safety device
- emergency stop
- worklight at the landing gear bracket
- driving lights for pre-u. reverse
- warning flashing light yellow
- horn
- Safety reflectors
- Driving breaker
Gallery
Adapted for aircraft types like:
Beechcraft
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
