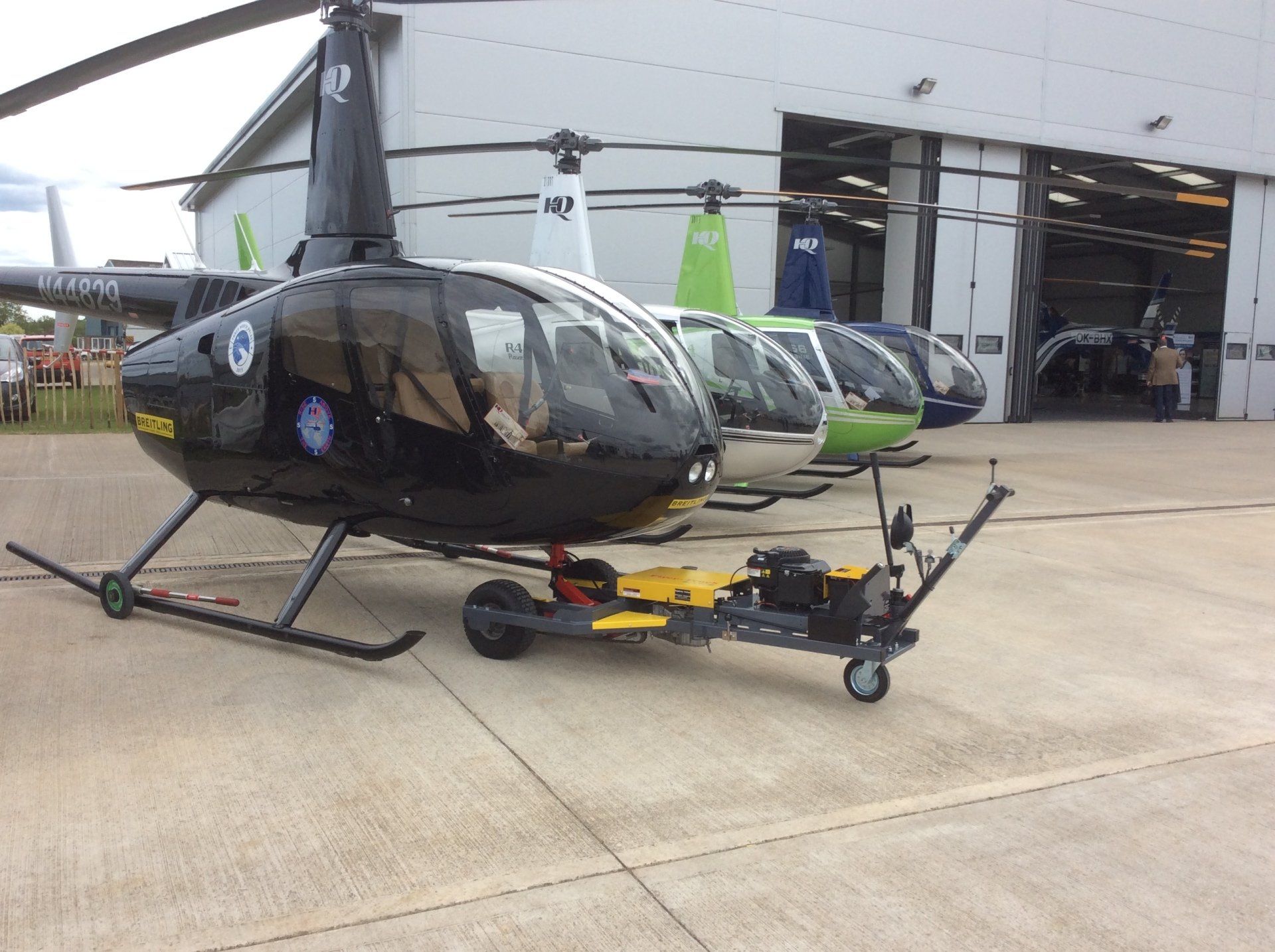

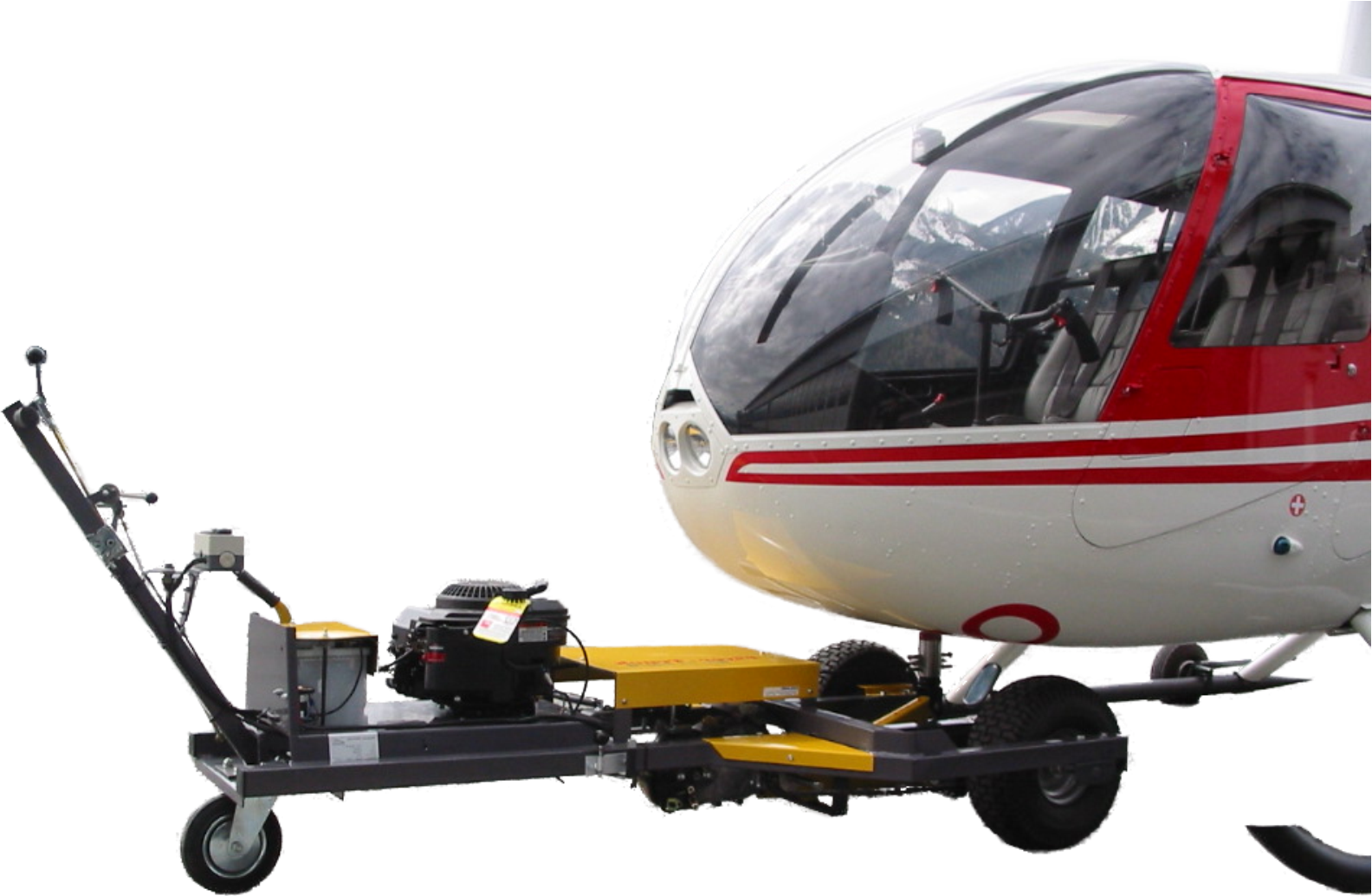

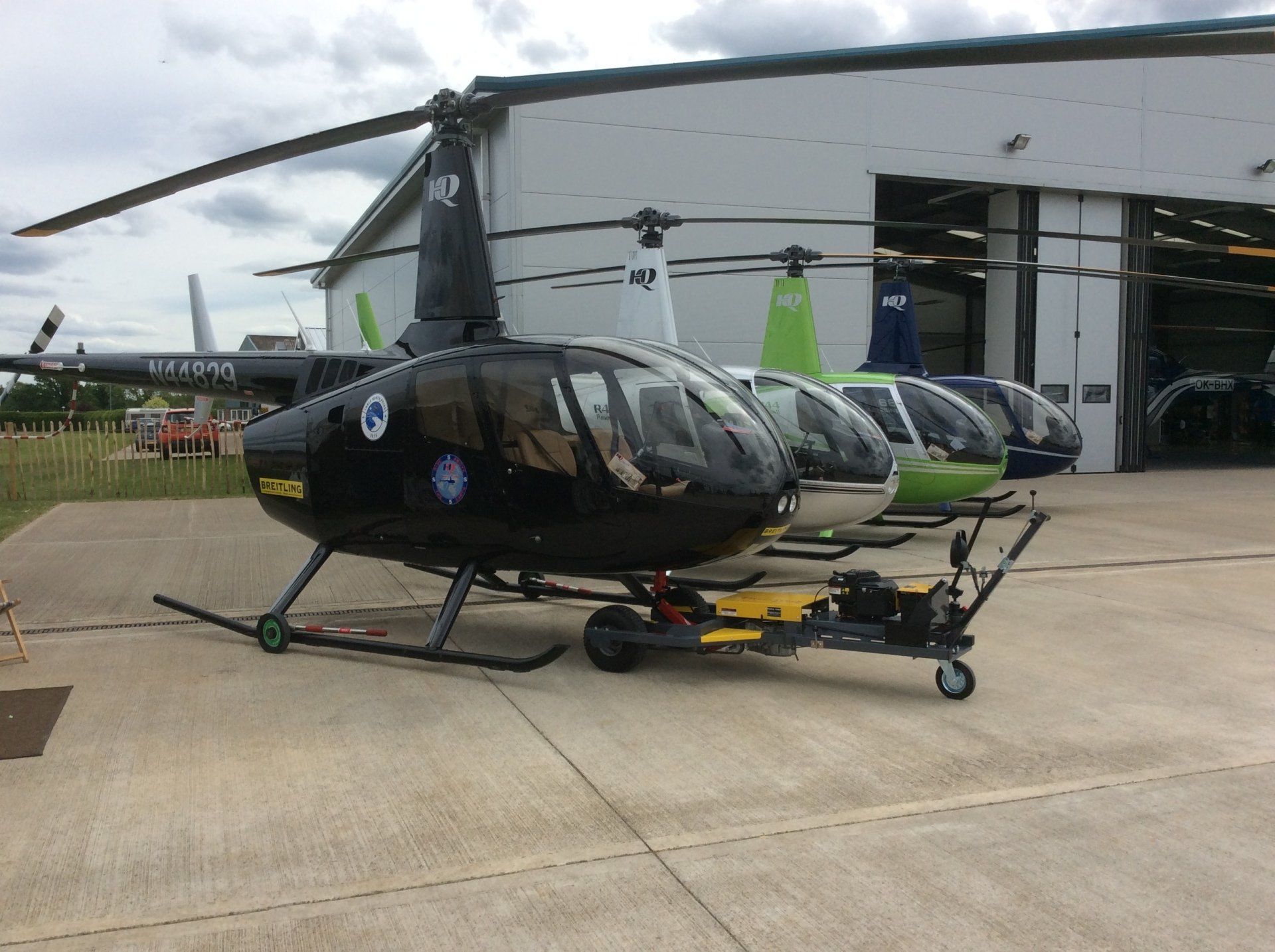

FLT 25 RO
adapted for Robinson helicopters R22 and R44
Technical Data
with fuel engine
motor
6.5 HP Briggs & Stratton AVS 4-stroke engine with electric starter
gearbox
Hydraulic traction drive - forward and reverse gear.
Continuously variable speed control, single lever operation
Continuously variable speed control, single lever operation
frames
Loading weight: 150 kg
weight empty: 120 kg
dimension: L x W 2.40 x 1.10 m
weight empty: 120 kg
dimension: L x W 2.40 x 1.10 m
landing gear bracket
PE adaptor with ball lock, hydraulically lifting device, mirror
drive
2 drive wheels with chain drive
tires
15 x 6.00 - 6 block drive wheels
electric
Battery 12V 45 Ah
Technical Data
with electric drive
drive system
Electric motor AC 24V 1.2 kW Differential axis TX1
Pulse contact control
battery
2 x 12V 135 Ah
battery charger
HF charger 230/24V 18A 50Hz with charge level indicator Adapter cable 230V 1.0m (charging cable)
brake
Spring power brake magnetic 16 Nm/24V
speed
Forward and backward:
approx. 0 - 6 km / h
frames
Loading weight: 150 kg
weight empty: 180 kg
dimension: L x W 2.50 x 1.10 m
weight empty: 180 kg
dimension: L x W 2.50 x 1.10 m
steering
Drawbar steering header
Plastic case with driving switches, fast and creep speed,
signal horn
Plastic case with driving switches, fast and creep speed,
signal horn
landing gear bracket
PE adaptor with ball lock, hydraulically lifting device, mirror
tires
15 x 6.00 - 6 block drive wheels
