FLT 120 electro

adapted for aircraft and helicopter
up to 13.0 t. max. take off weight

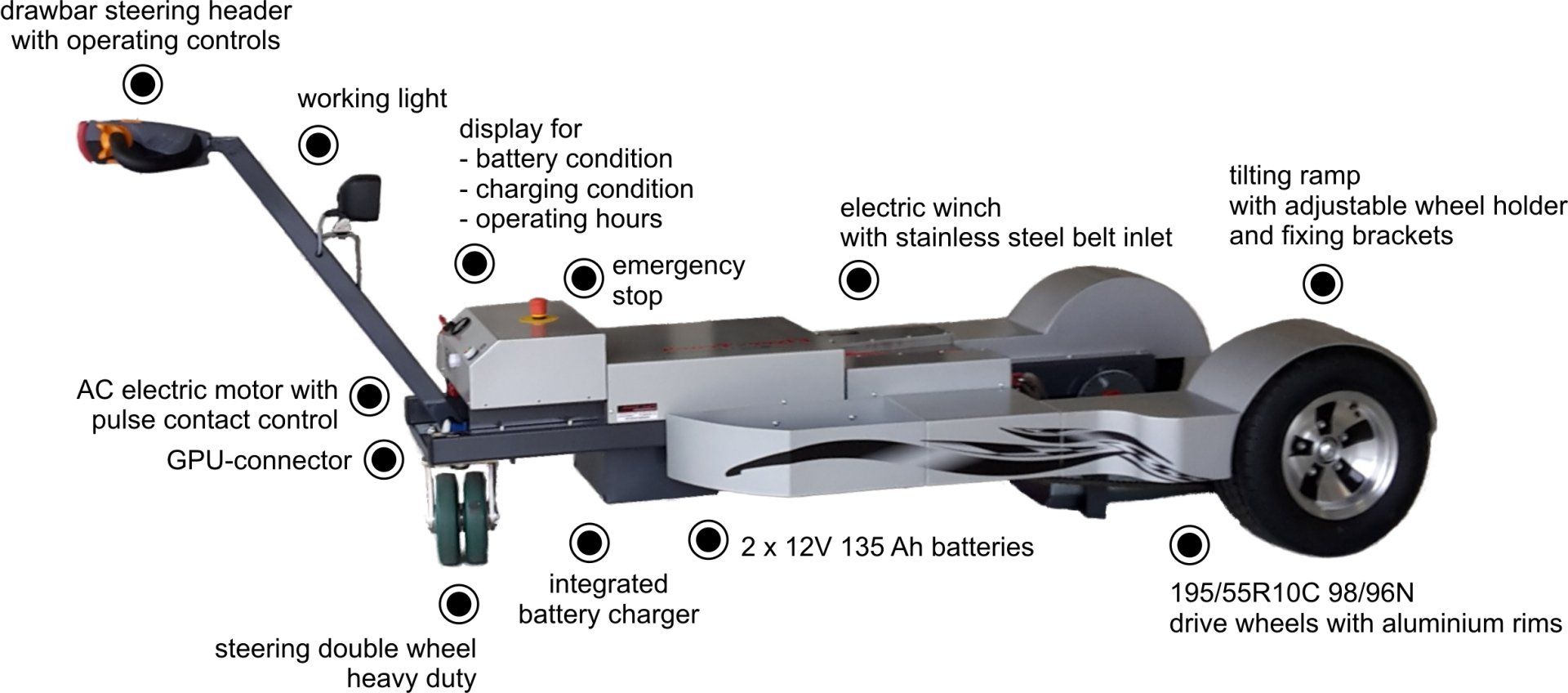

FLT 120 electro
The Flyer-Truck FLT 120 electro is an aircraft tug for medium business jets up to 13.0 tons MTOW. An all-rounder for single and double nose wheels.
The aircraft tug combines the requirements of value stability, simple operation, flexible use without mechanical rebuilding measures and high-quality processing.

Overview

FLT 120 electro

Technical Data

drive system

Electric engine AC 24V 1.8 kW
Differential axis TX1
Pulse contact control

battery

2 x 12V 135 Ah

battery charger

HF charger 230/24V 18A with charge level indicator
incl. adapter cable 230V 1.0m (charging cable)

brake

Spring power brake magnetic 16 Nm / 24V

speed

Forward and backward:
approx. 0 - 4 km / h

frame

Loading weight: 1800 kg,
for aeroplanes approx. 13.0 t MTOW
weight empty: 328 kg
dimension: L x W 3.00 x 1.24 m

steering

Drawbar steering header
Plastic case with driving switches, fast and creep speed, signal horn

landing gear bracket

Simple bracket for nose wheel pick up with tilting ramp,
electric winch with flat belt,
For single and double nose wheels up to max. 400 mm width,
With adjustable wheel holder

tires

Double steering wheel, heavy duty drive wheels 195 / 55R10C 98 / 96N

equipment

External GPU connector 24V
2 open storage boxes

Gallery

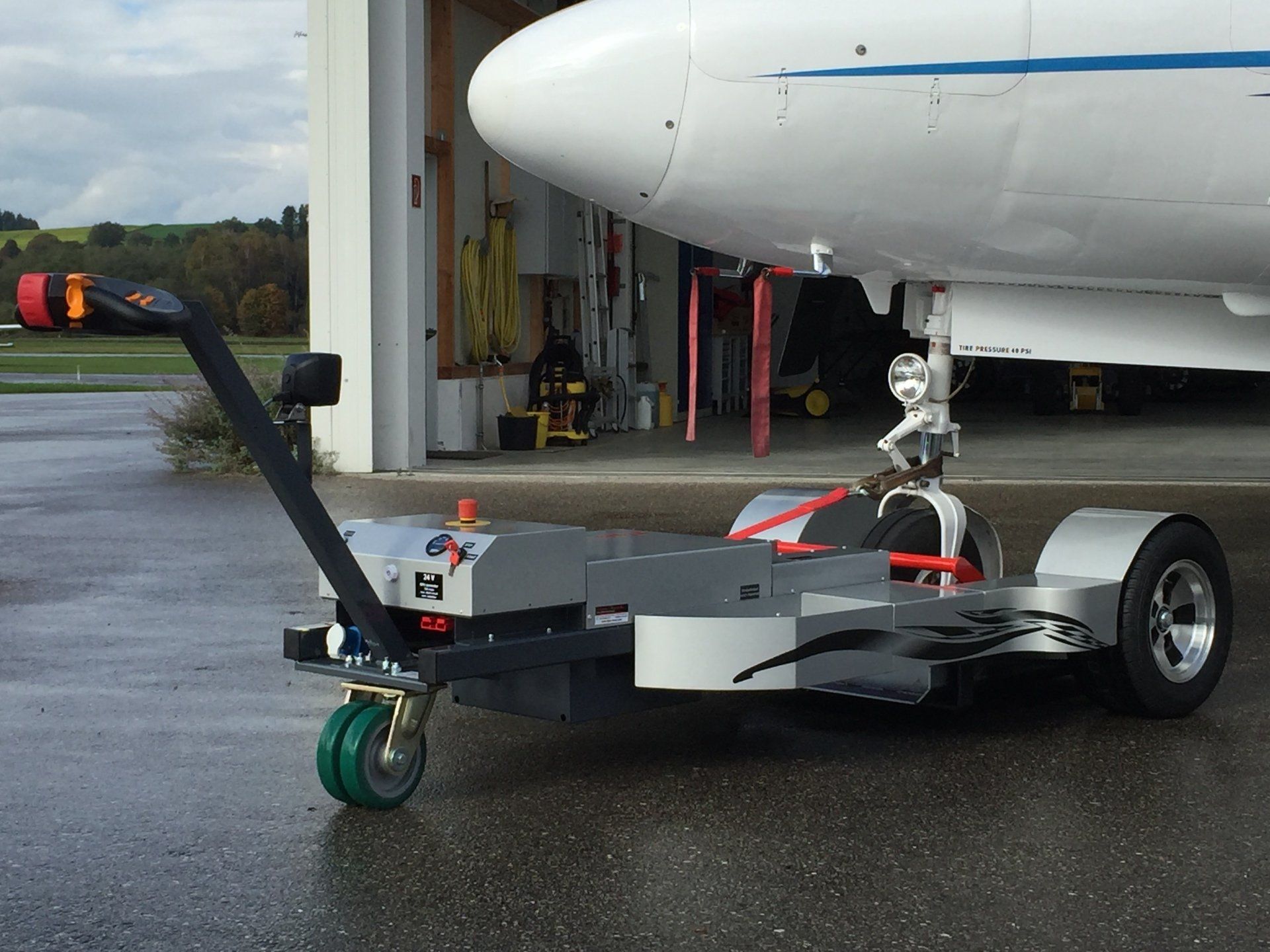

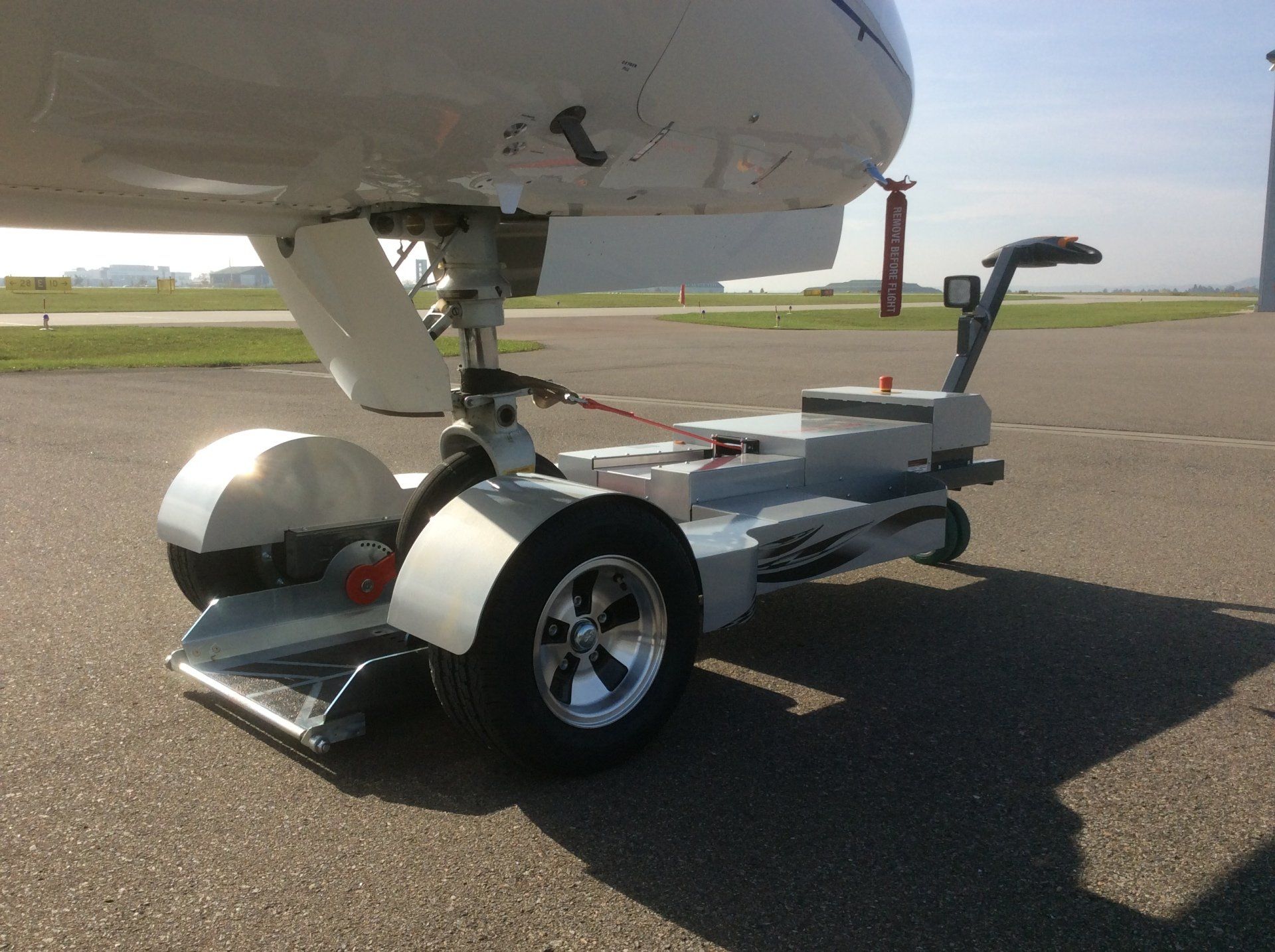

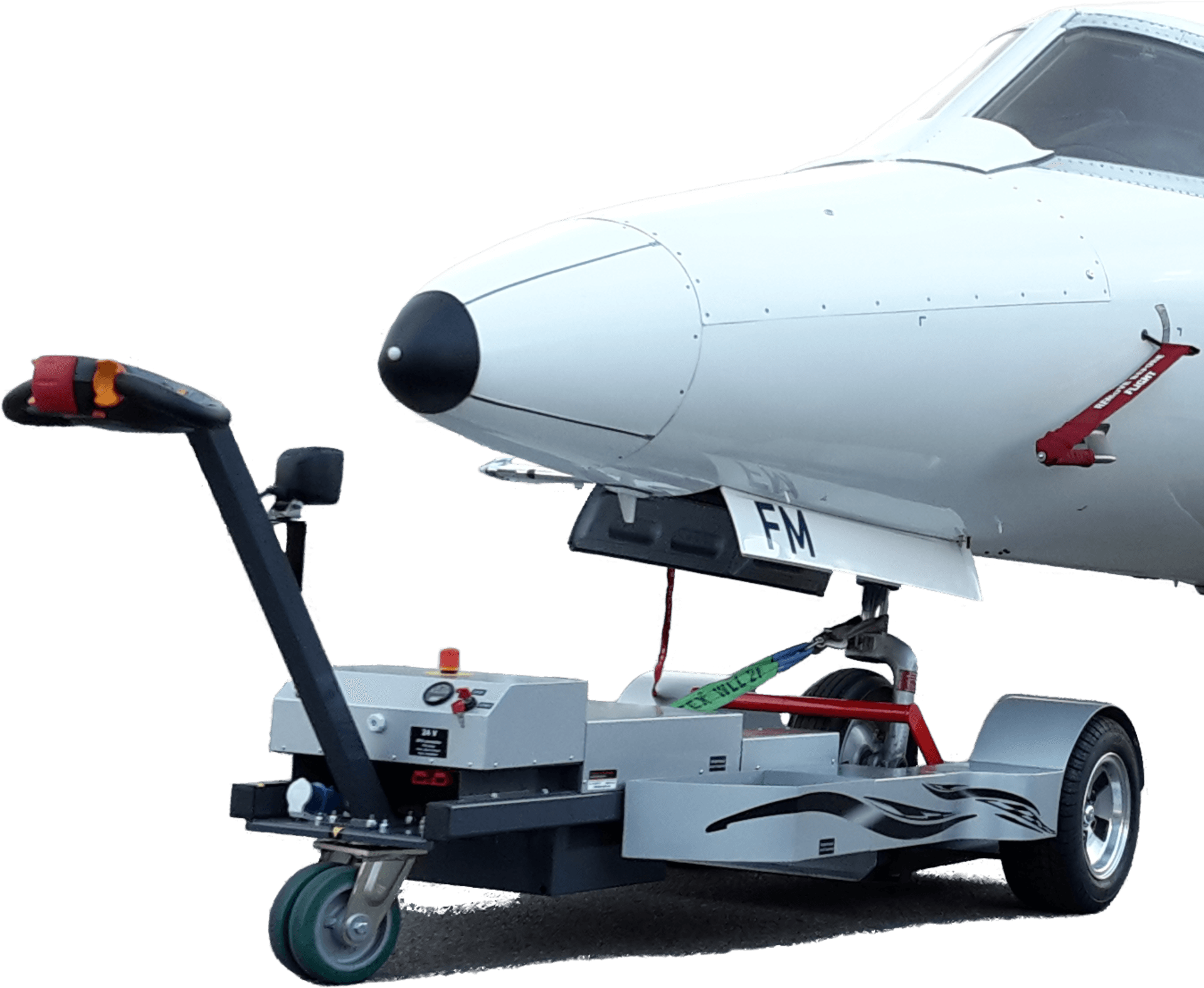

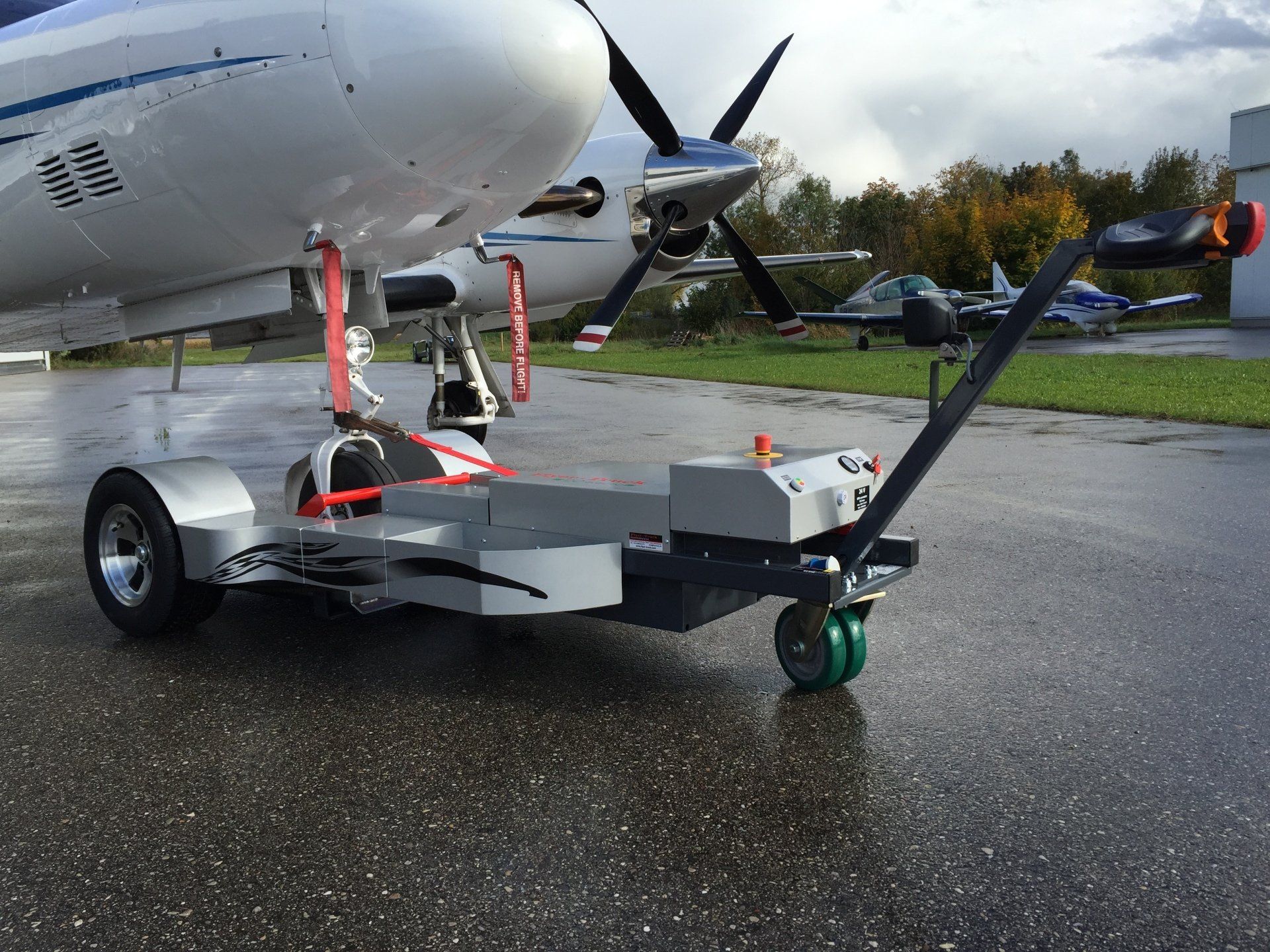

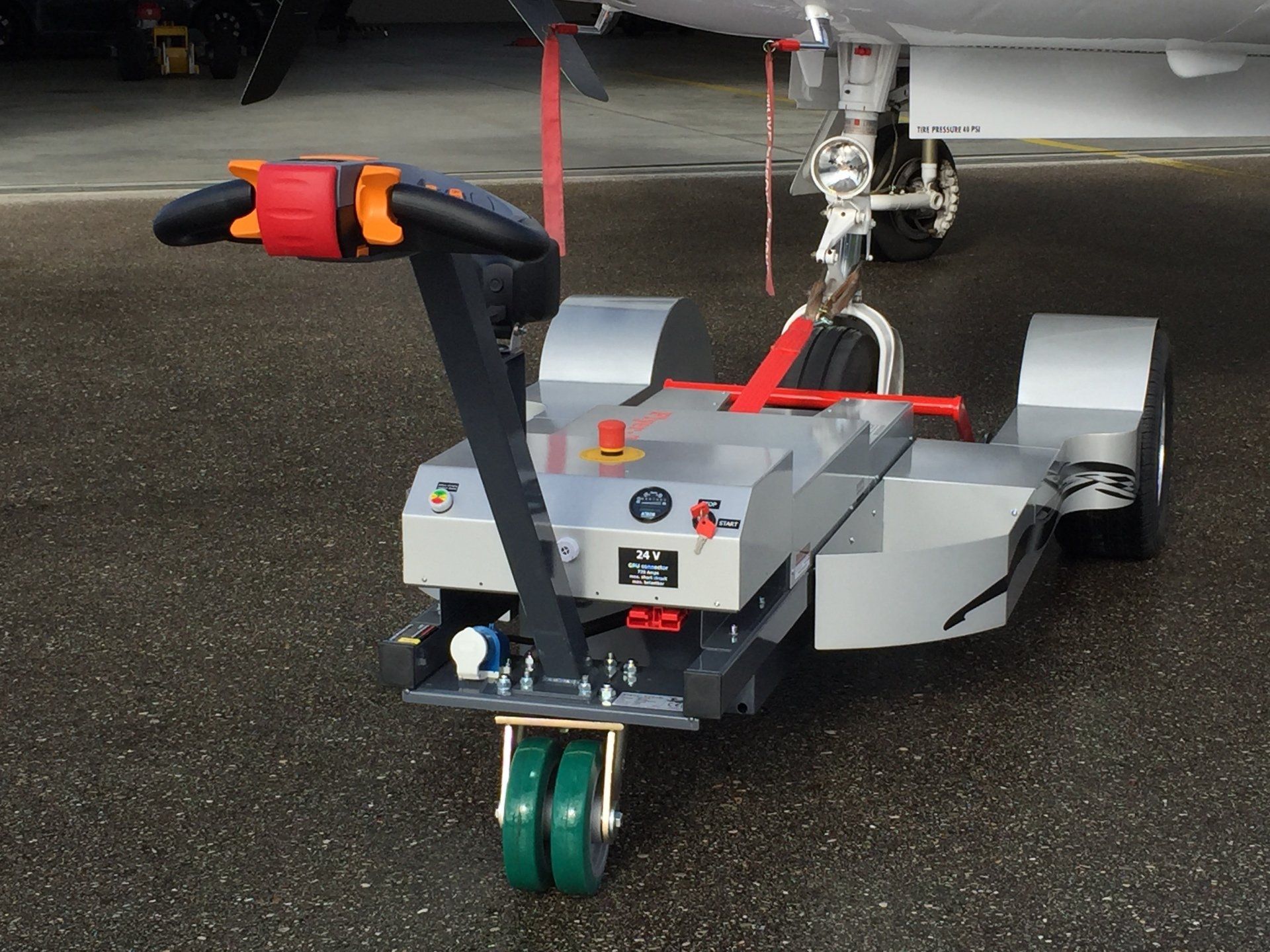

FLT 120 electro
FLT 120 electro
FLT 120 electro

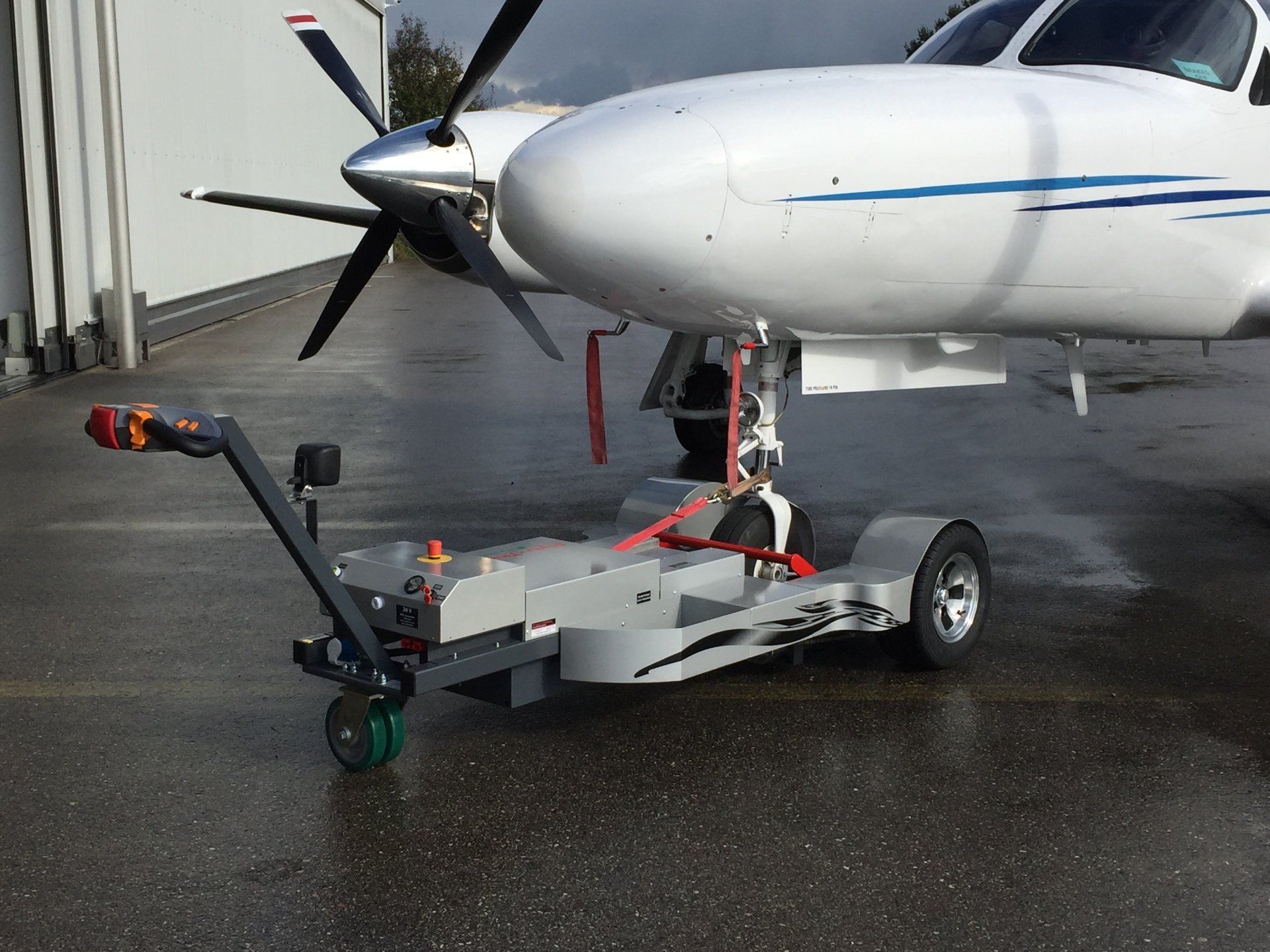

FLT 120 electro with Cessna Conquest

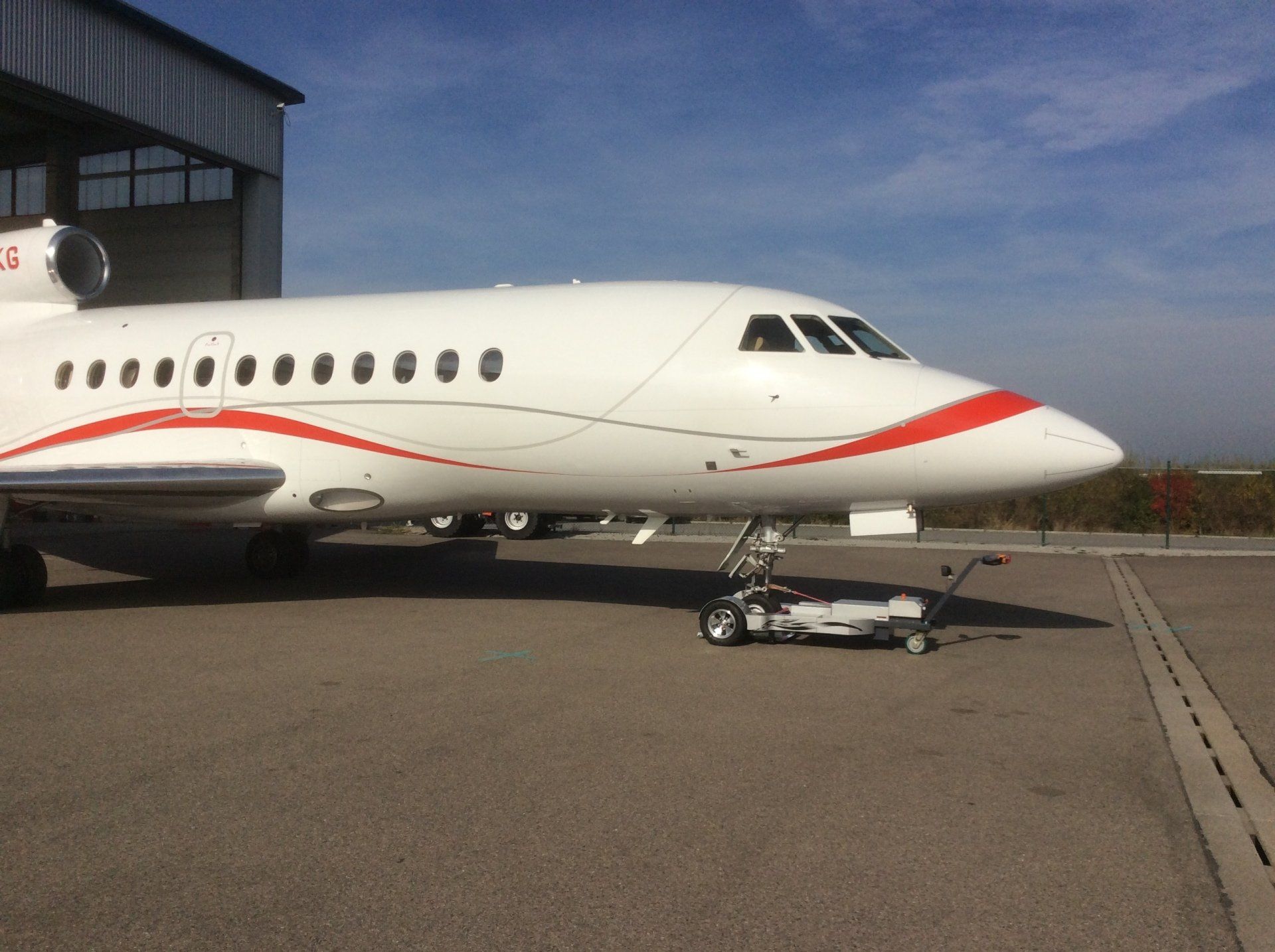

FLT 120 electro with Falcon 900

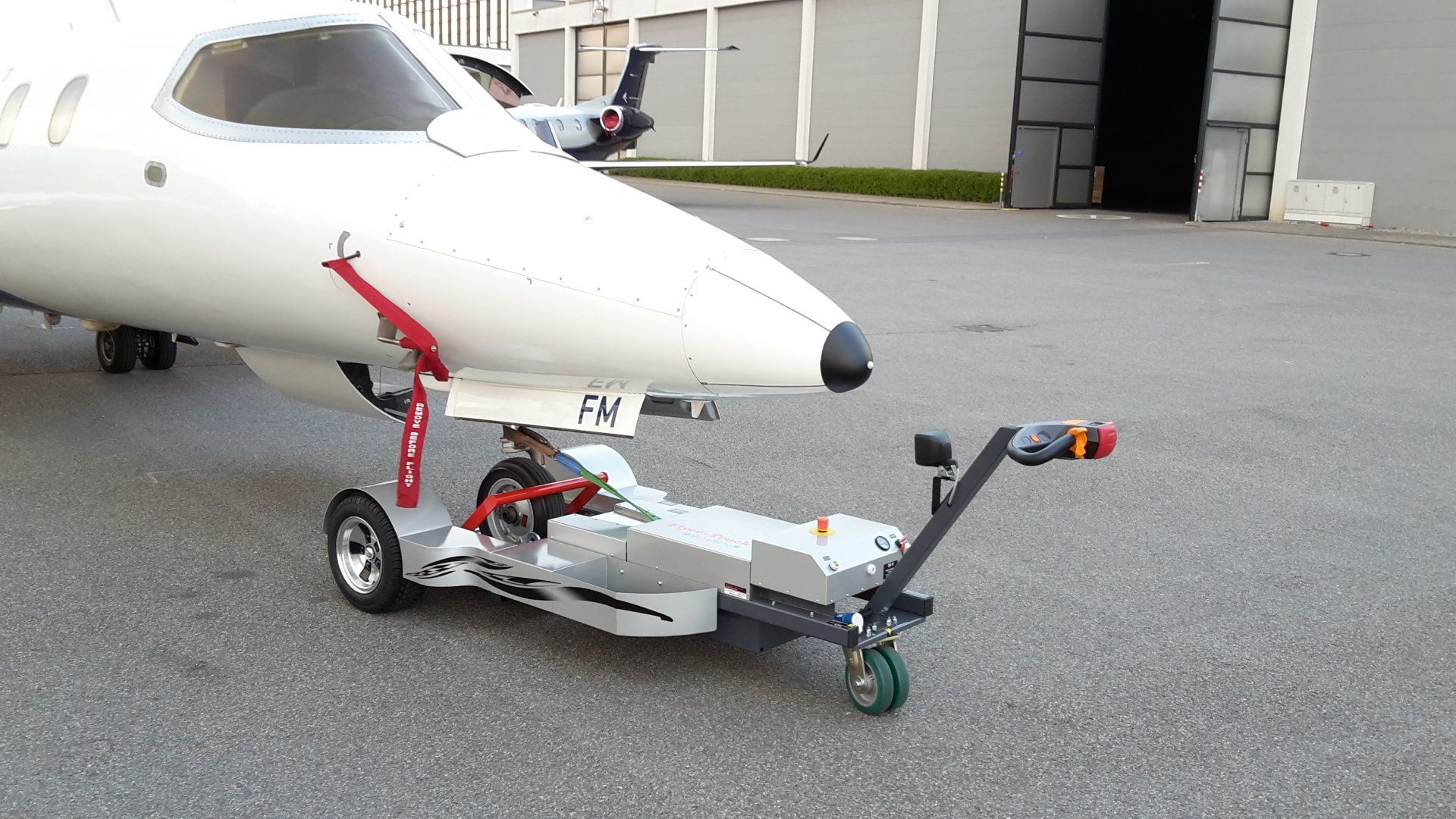

FLT 120 electro with Learjet
FLT 120 electro with Quest Kodiak

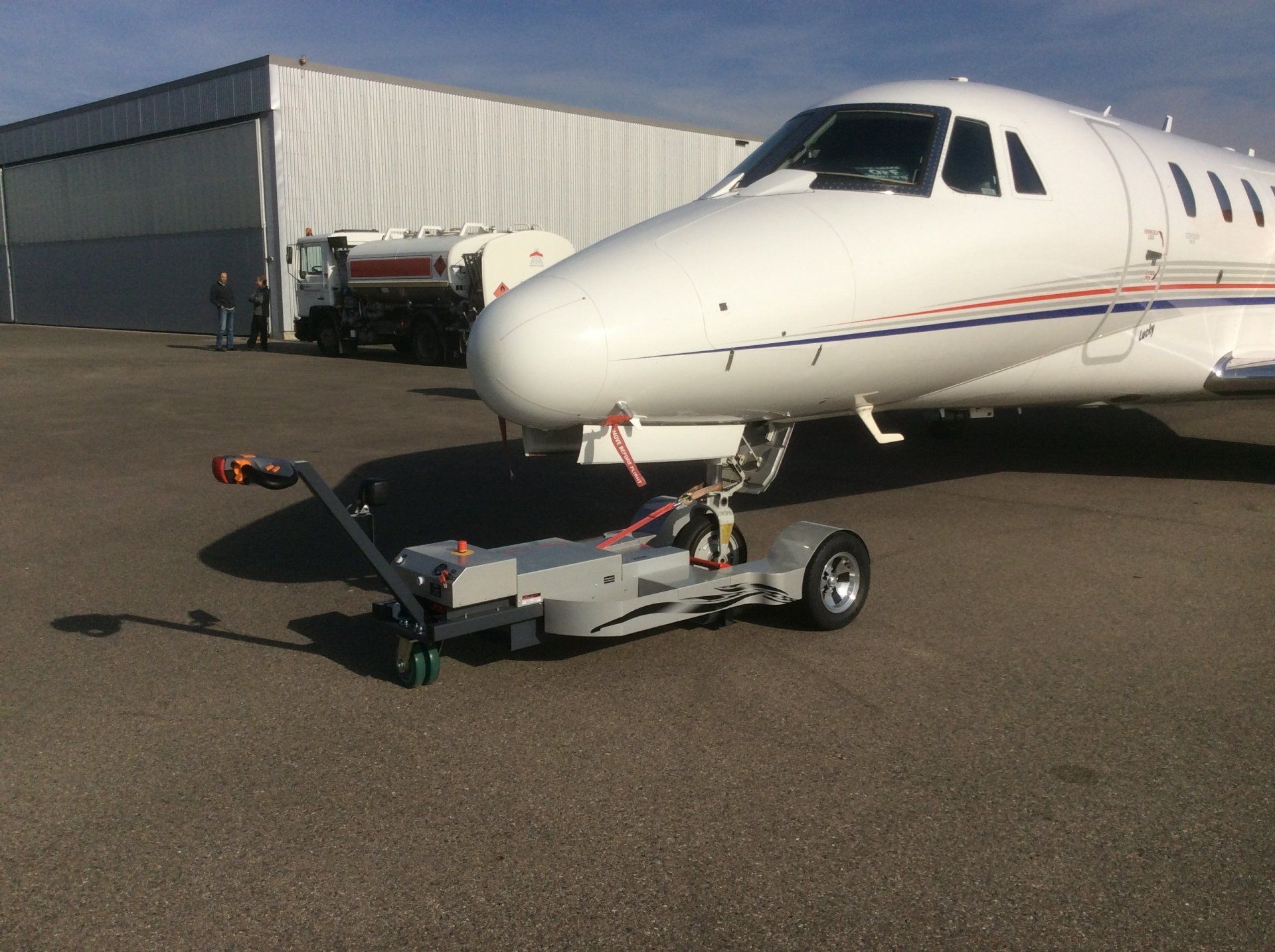

FLT 120 electro with Cessna XLS+
FLT 120 electro

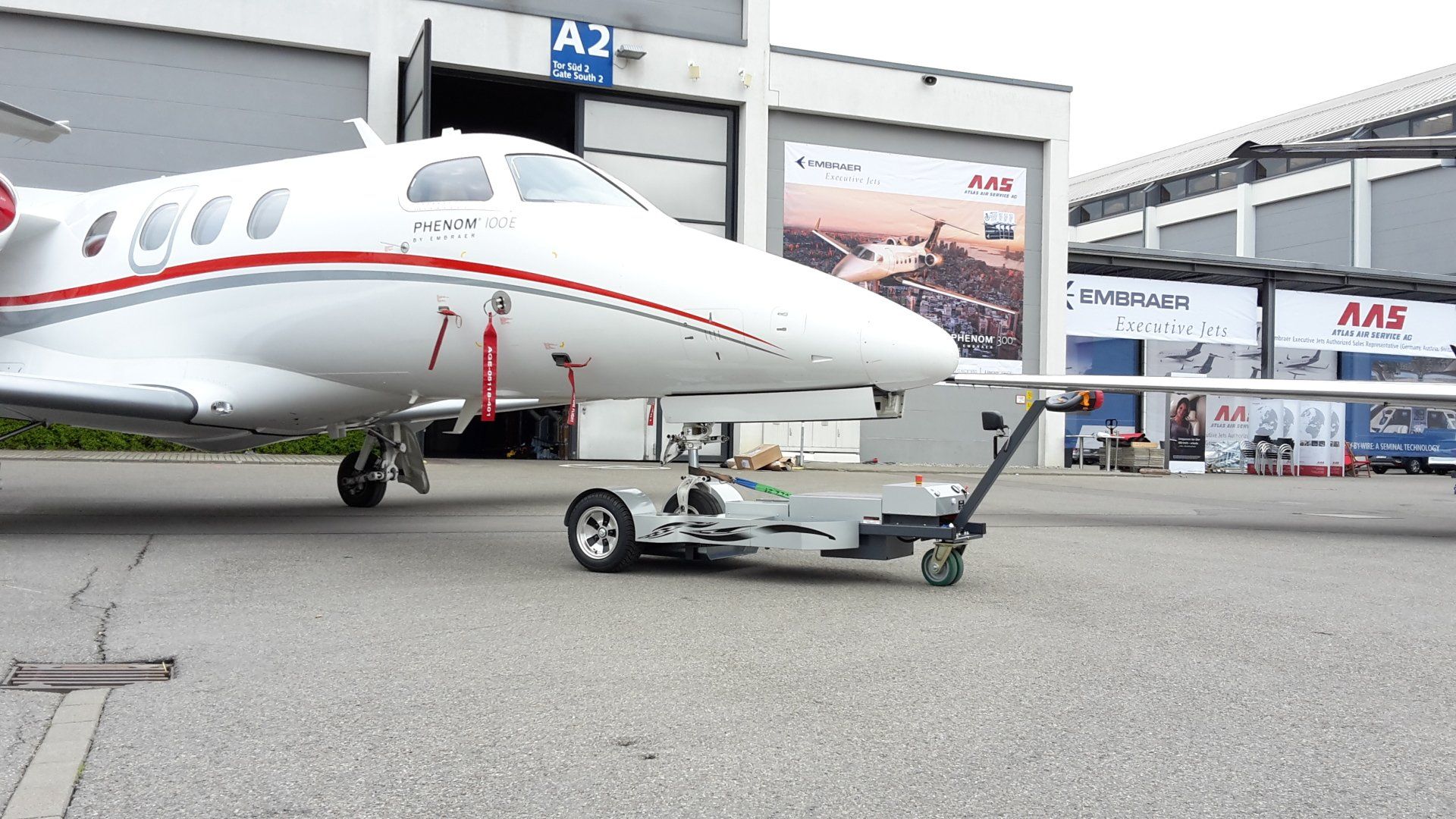

FLT 120 electro with Phenom 100

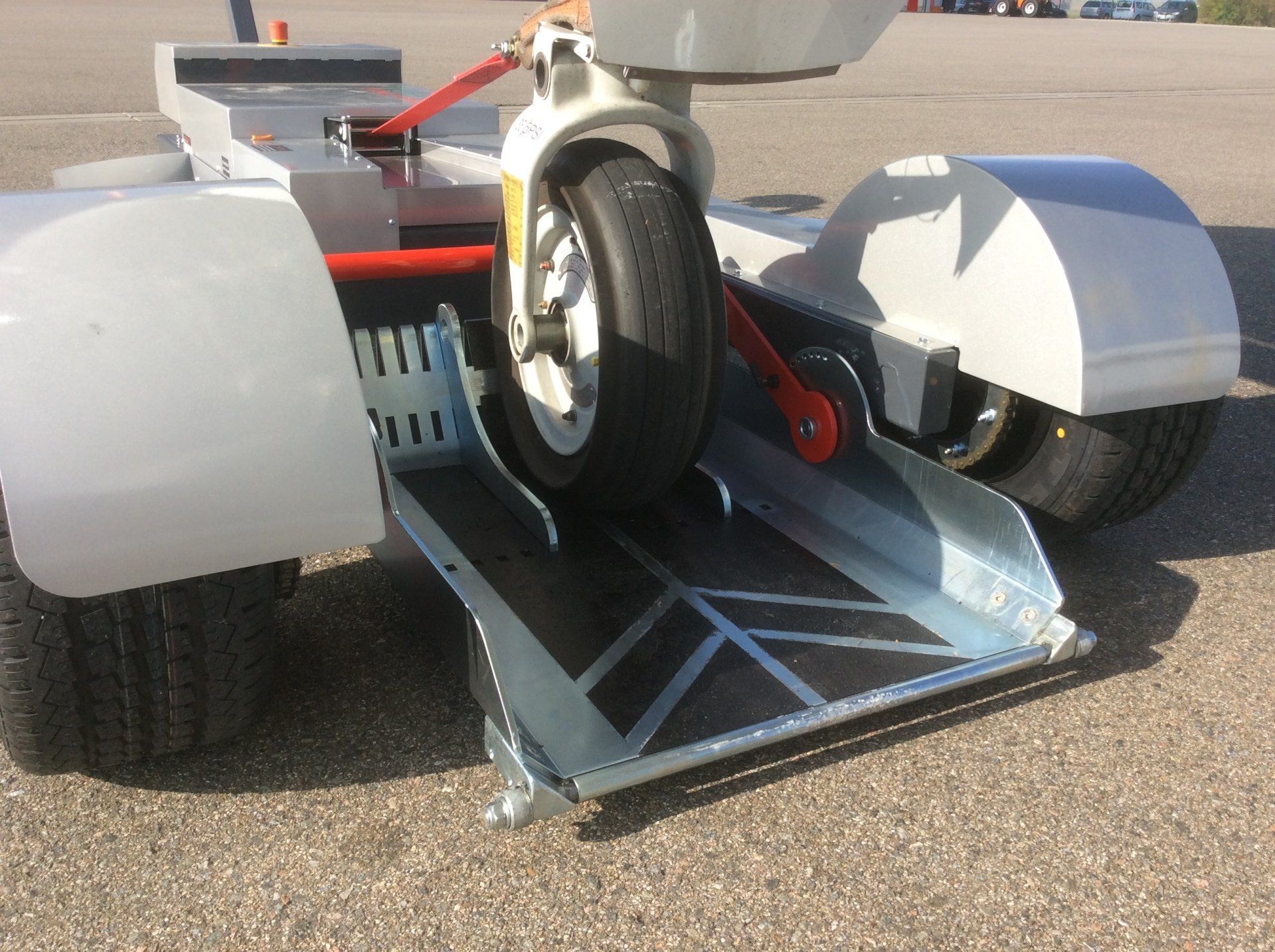

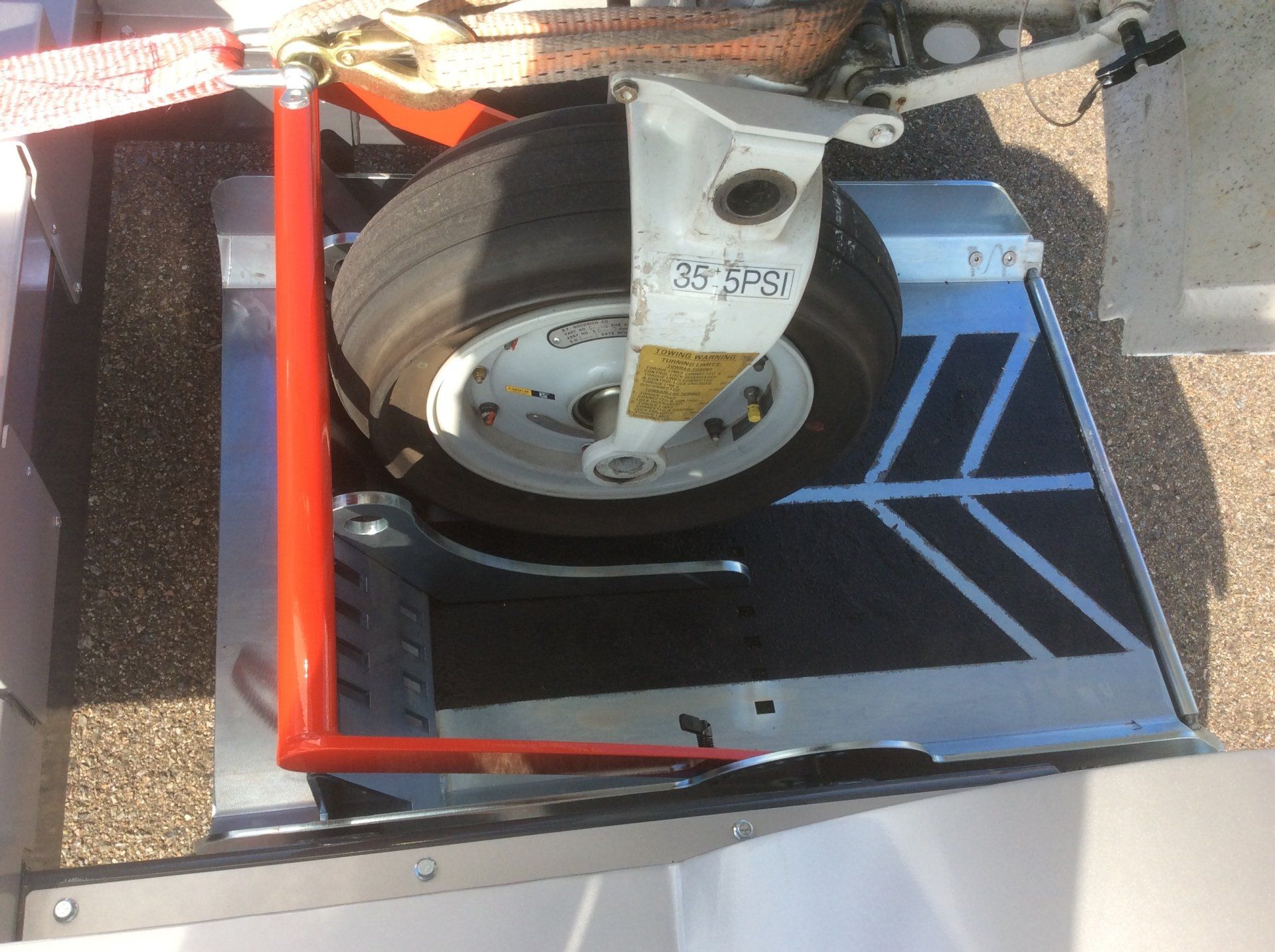

FLT 120 electro tilting ramp with single nose wheel
FLT 120 electro tilting ramp with single nose wheel

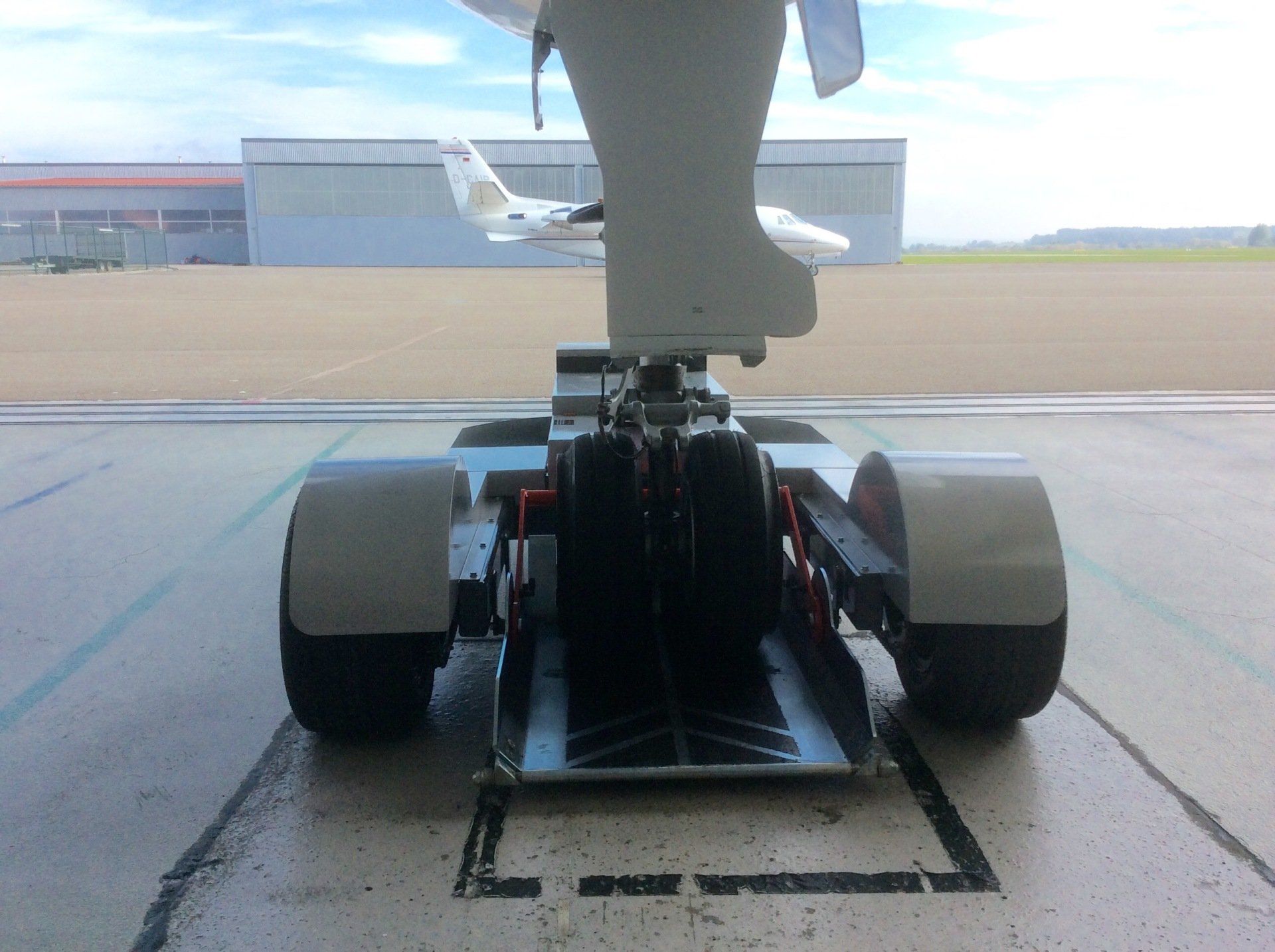

FLT 120 electro tilting ramp with double nose wheel

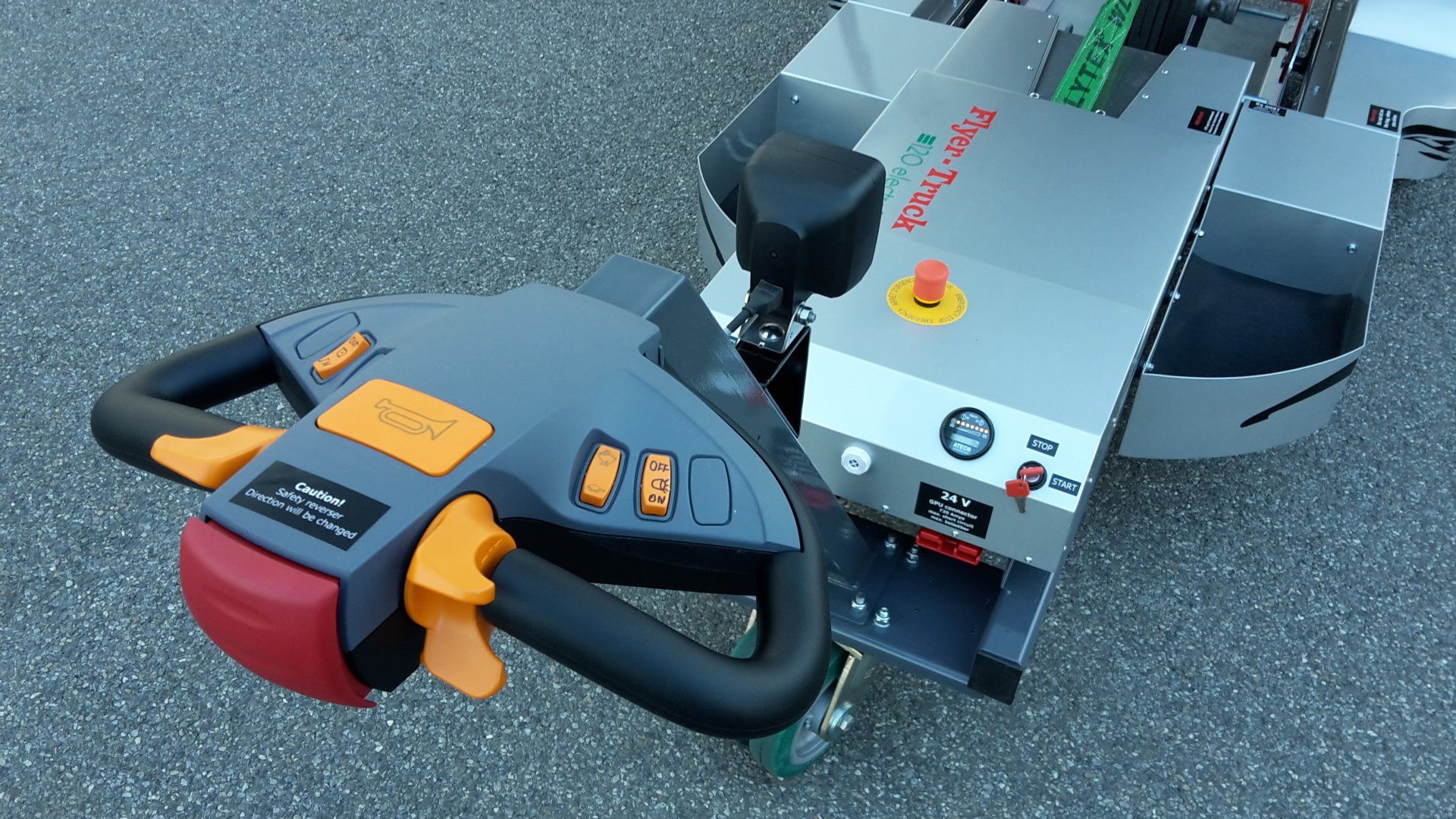

FLT 120 electro Deichselsteuerkopf

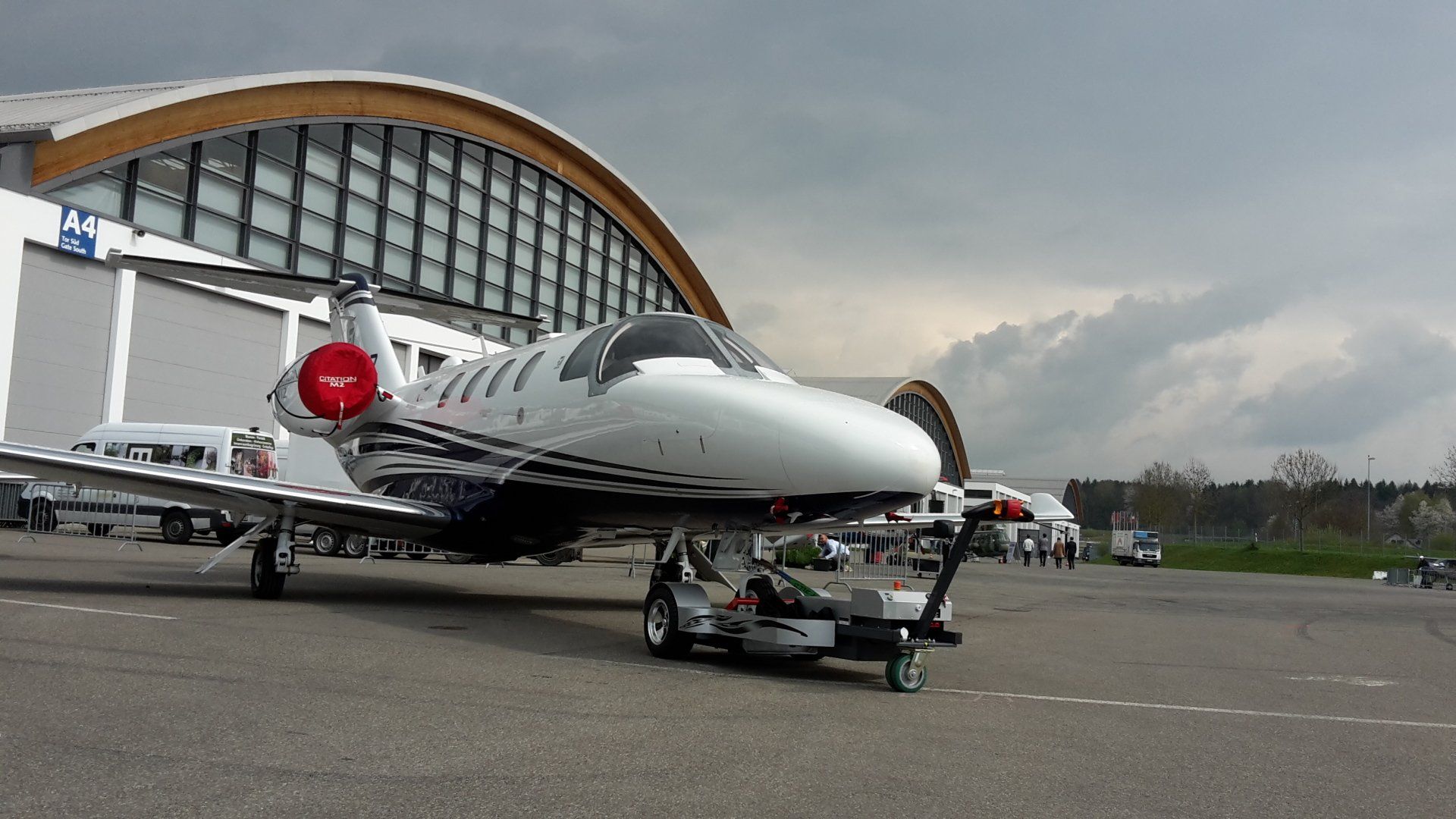

FLT 120 electro with Citation M2

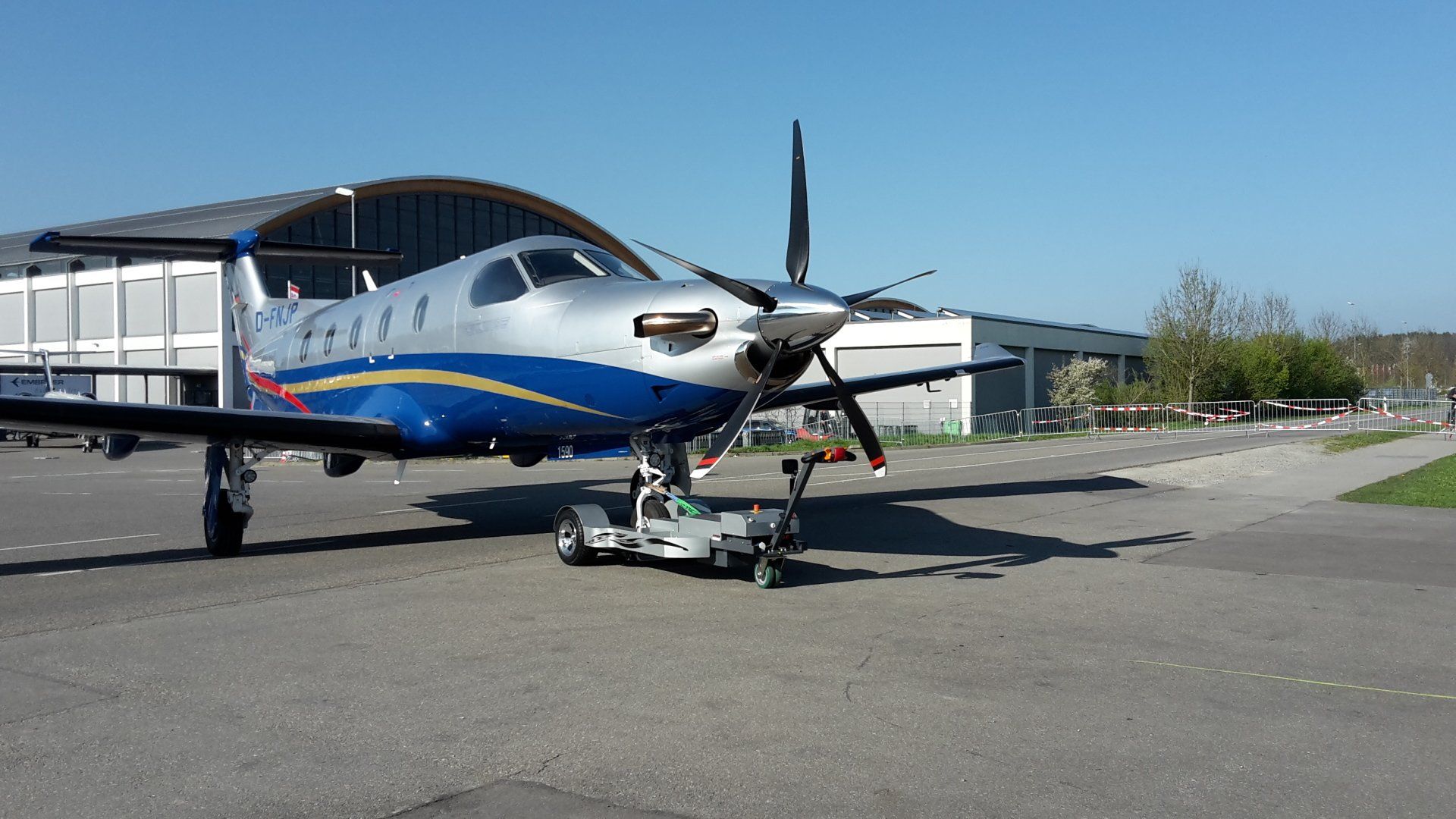

FLT 120 electro with Pilatus PC12

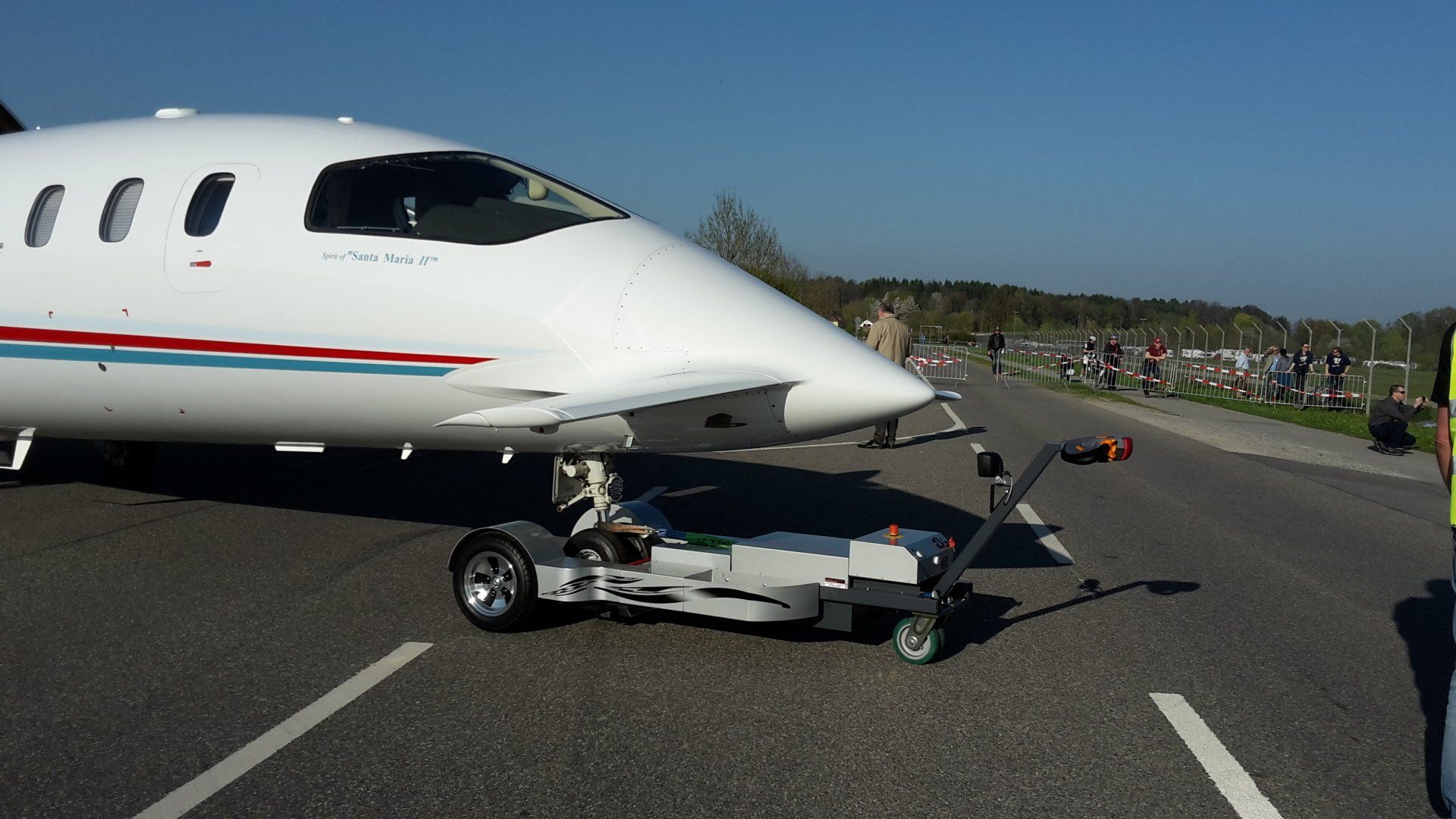

FLT 120 electro with Piaggio Avanti

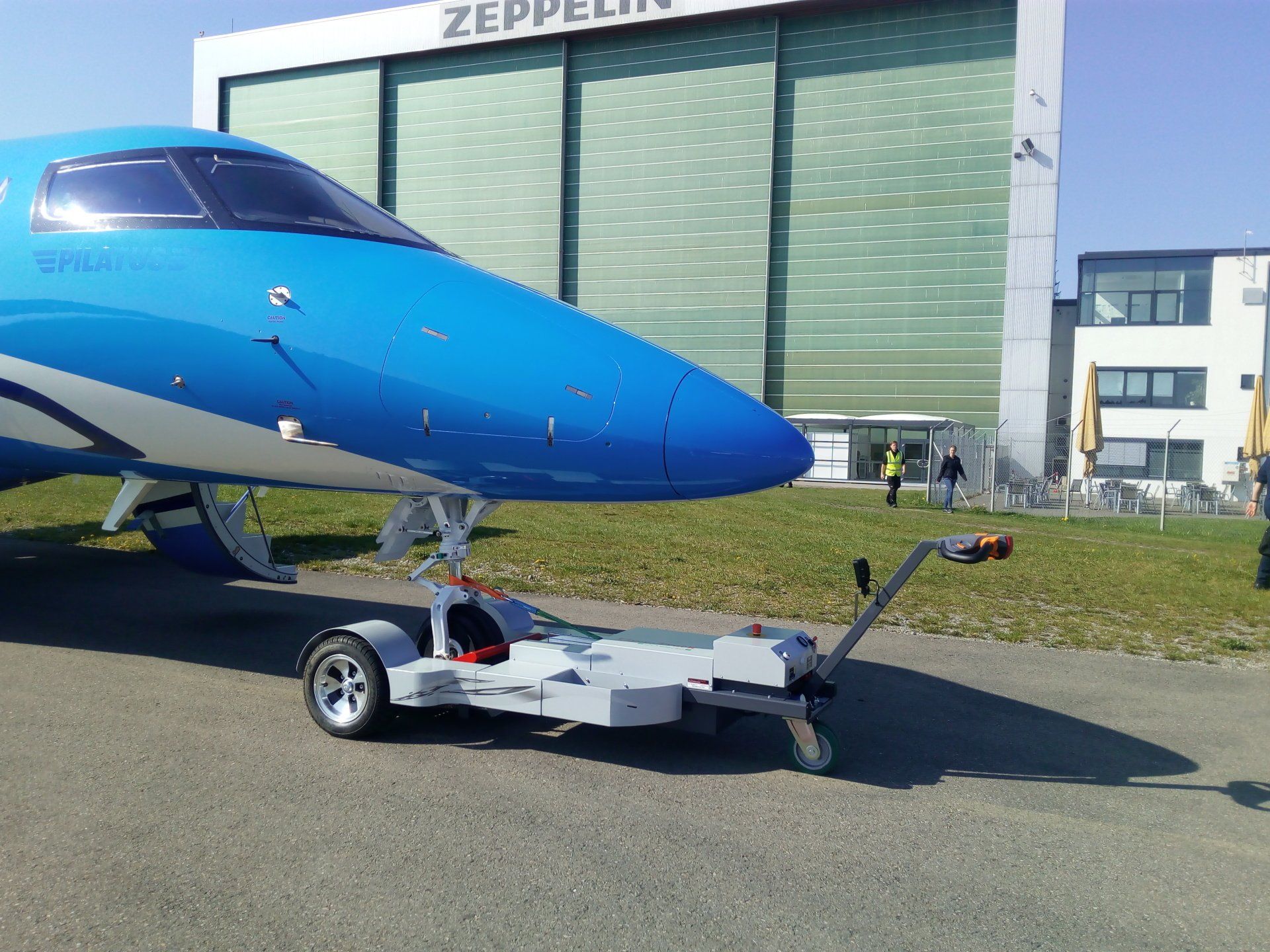

FLT 120 electro with Pilatus PC24

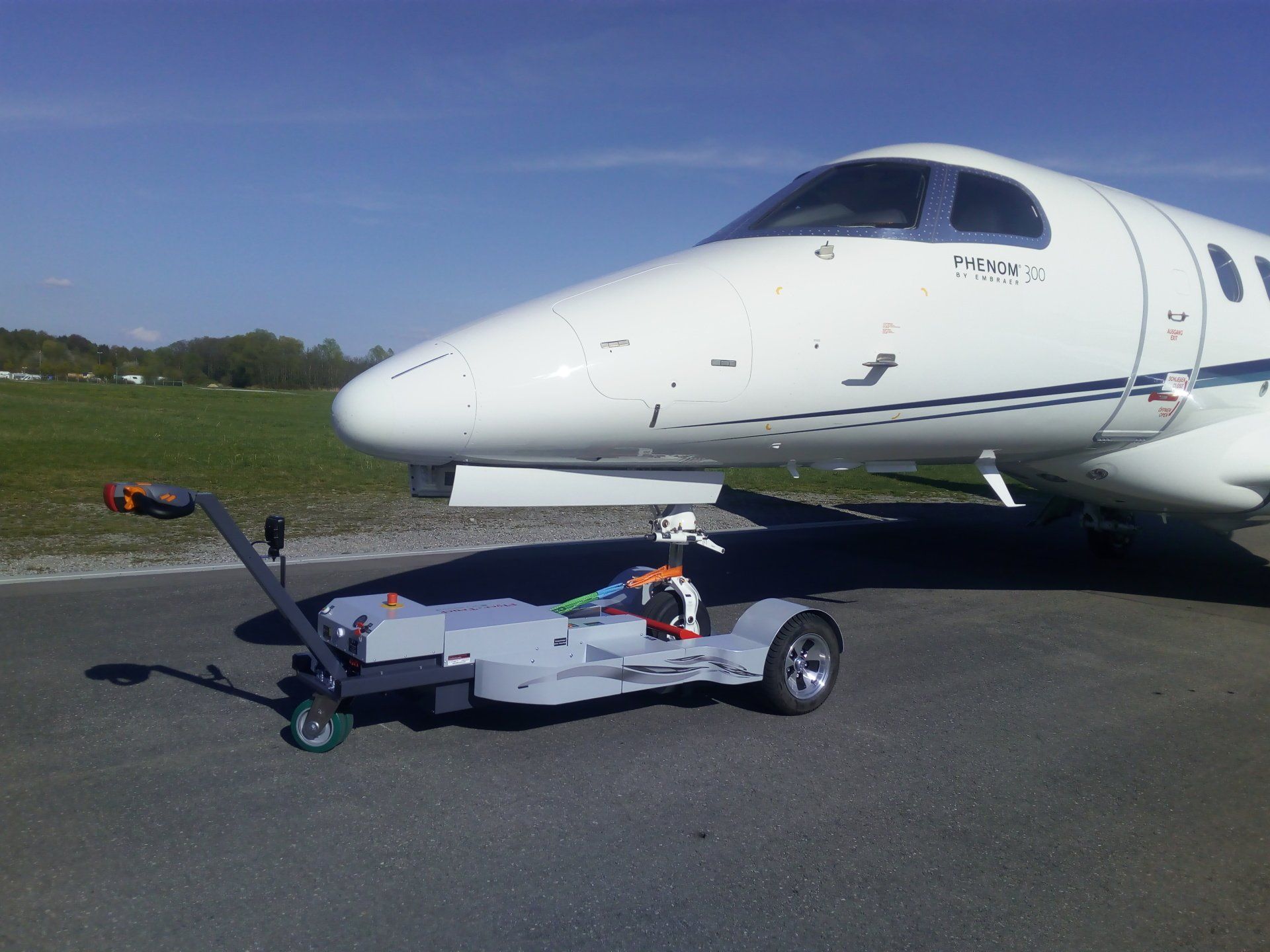

FLT 120 electro with Phenom 300
FLT 120 electro with Socata TB-10
FLT 120 electro with Cirrus SR22

Adapted for aircraft types like:

Beech Bonanza 33, 36, Baron 58
Beech Jet 400, 400 A
Beech King Air 90, 200, 250, 350, Beech Premier 1
Cessna Caravan I, Golden Eagle 421
Cessna Citation II, Citation Jet CJ1 - CJ4, Mustang, XLS
Cirrus Jet
Daher TBM 700, 850, 900, 930
Dornier Do 228
Eclipse 500
Hondajet
Learjet 31, 36, 40 60, 75
Phenom 100, 300
Piaggio P.180 Avanti
Pilatus PC-12, 24
Piper PA 46, Cheyenne I/II
Saab 340
